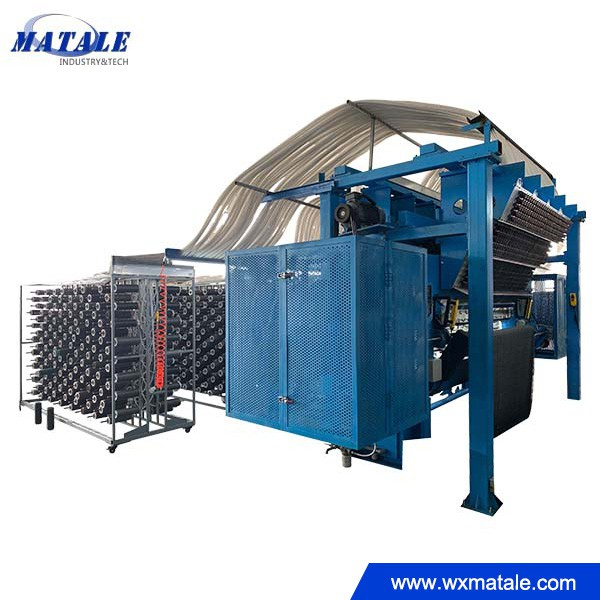

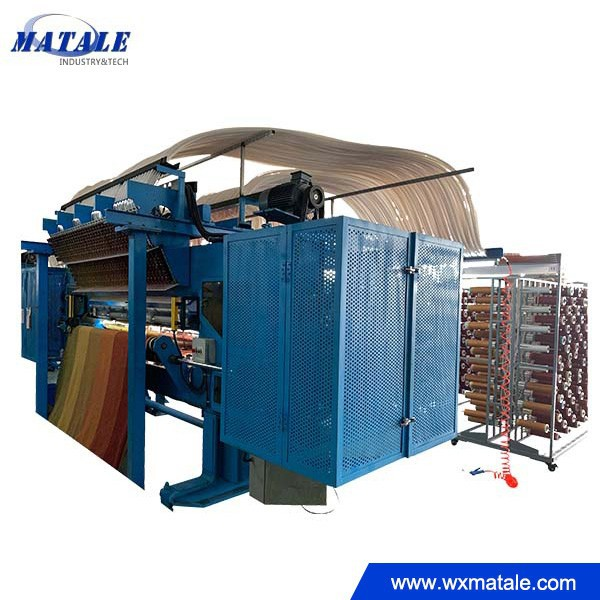

FRS Tufting Machine

Introduction

This FRS scroll tufting machine makes jacquard designs by independently control the feeding quantity of each yarn, thus achieve the high and low pile effect. It can make two or three heights on one carpet.

Parameters

Machine Name: FRS LCL tufting machine

Machine Size:

2m L*W*H7.8*2.4m*3.3m

4m L*W*H6*2.4m*3.3m

Working width: 1.25m or 2m or 4m

Gauge: 1/8" or 5/32"

Loop pile height range: 6-22mm

Mechanical speed: 600RPM

Stitch density: 25-60 stitches/10cm

Total power: 2m 30kw

4m 40kw

Optional sliding needle bar or jute mover

Servo motor + planetary reducer feeding of primary back

Roller puller controlled by servo motor

Operation setting on touch screen

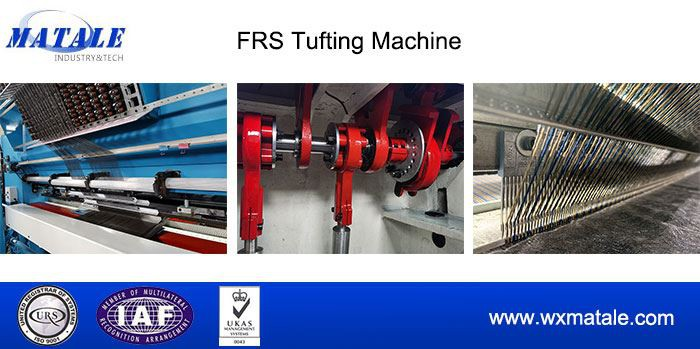

Machine Feature

● LCL tufting machine,Stable structure with no internal stress

● Deformation by using cast frame and overall annealing treatment.

● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

● Equipped with lifting rings , easy for movement.

● Air cylinder device for backing roll loading.

● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

● By using 4 individual point s crews , machine can stand on all types of floors .

● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

● Overload protection, cover protections , pull wire emergency stop switch.

● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

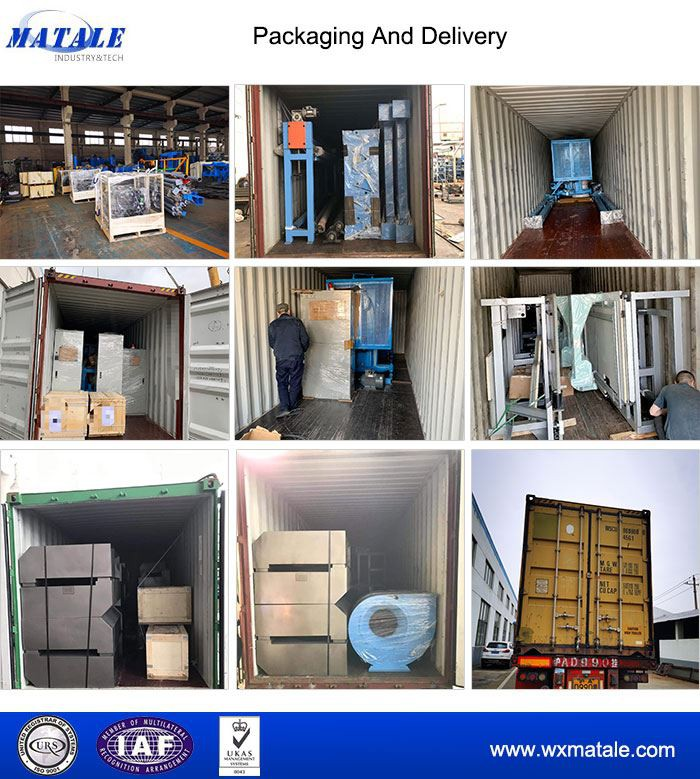

Packing and shipping

Packing details

1. Wrapping film with steel wire fixed for main machine

2. Wooden case or carton for small parts packing.

Shipping details

1. Test running before shipping

2. Strictly inner inspection before loading

3. Loading photos or videos provided
