Patterned loop pile tufting machine Parameters
1. Machine size(LW*H):6200*2200*3000(2m)8200*2200*3000(4m)
2. Working width:2m or 4m
3. M/C gauge:1/12,1/6+1/6 front and rear two needle bars
4. Main structure:cast frame and six position foot screw ensure
5. machine stability
6. Total power ref.:40KW(2m)55KW(4m)
7. Mechanical speed:1000 RPM
8. Sliding speed:800RPM
9. Pile height:2.5-9 mm
10. Stitch rate:25-60 stitches /10cm
11. Primary back roller loading:cylinder automatic control
12. Primary back fabric feeding:double servo motor control
13. Gauge parts:both Groz and China made available.
14. Adjustable bed plate:flexible manual control.
15. Standard power cabinet and operation cabinet with 12.5"touch screen
16. Industrial computer with latest windows system
17. Puller roller:servo motor control
18. Sliding:double needle bar with servo motor control
19. Yarn feeding:individual servo motor control

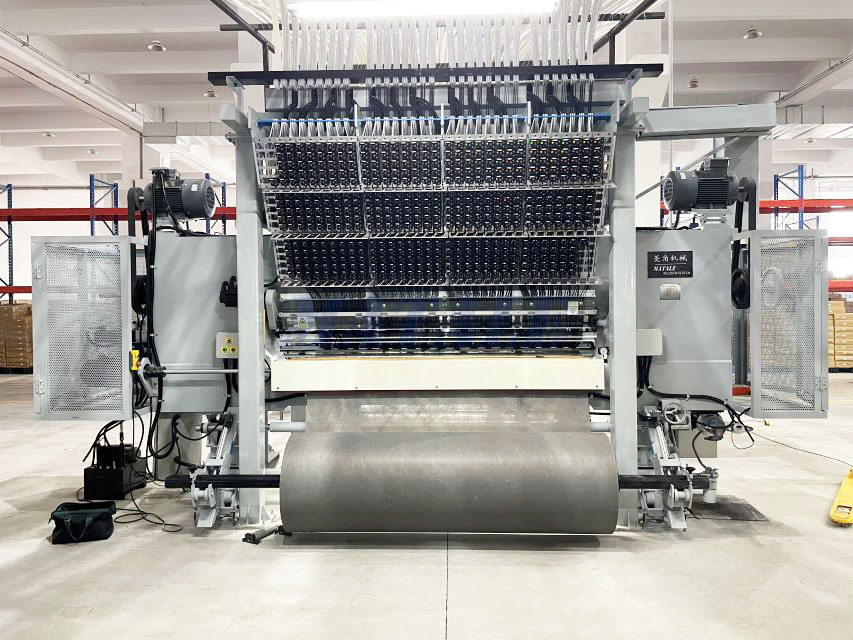

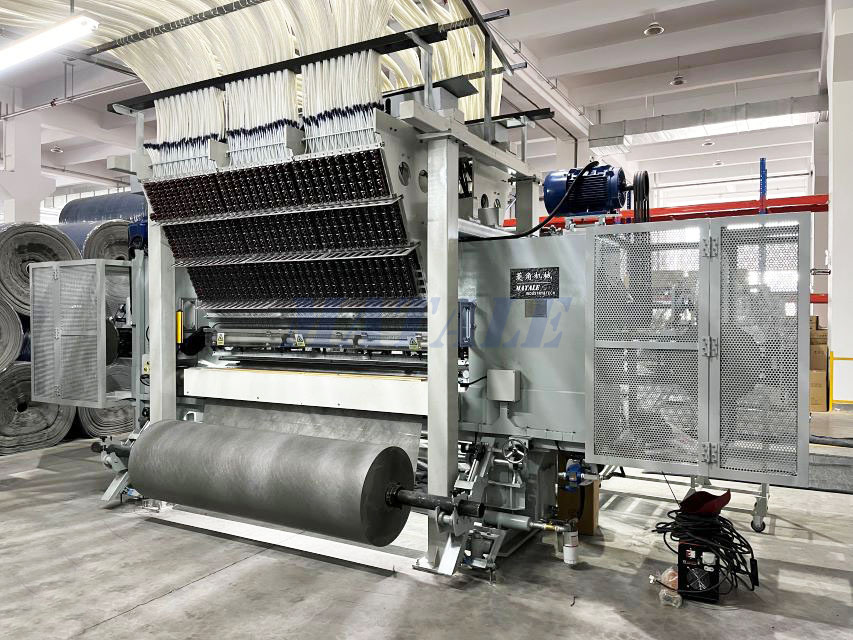

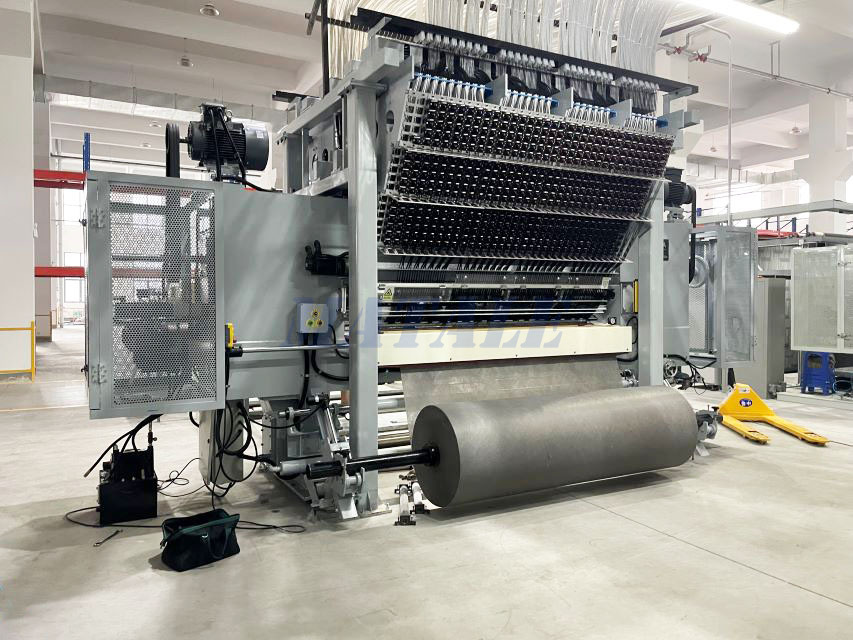

6+6 Tufting Machine Product
 |  |
 |  |
Machine Feature
Stable structure with no internal stress
deformation by using cast frame and overall annealing treatment.
Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
Equipped with lifting rings , easy for movement.
Air cylinder device for backing roll loading.
High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
By using 4 individual point s crews , machine can stand on all types of floors .
Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
Overload protection, cover protections , pull wire emergency stop switch.
Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

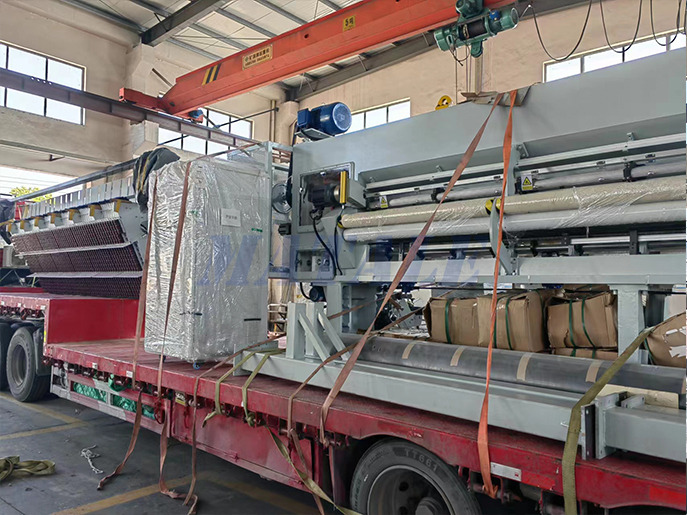

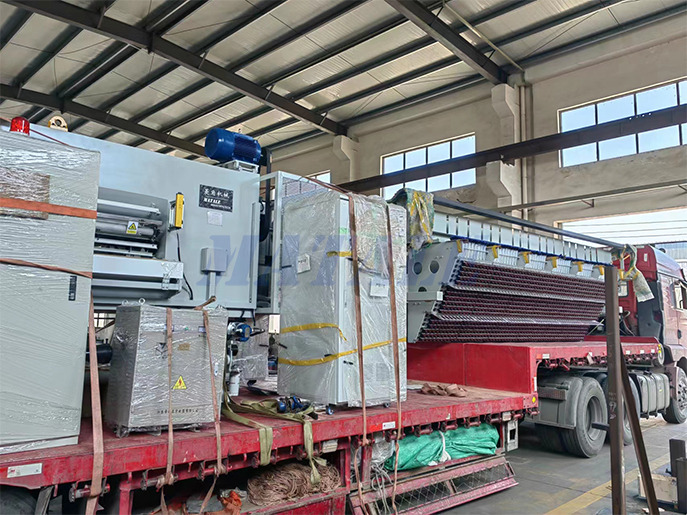

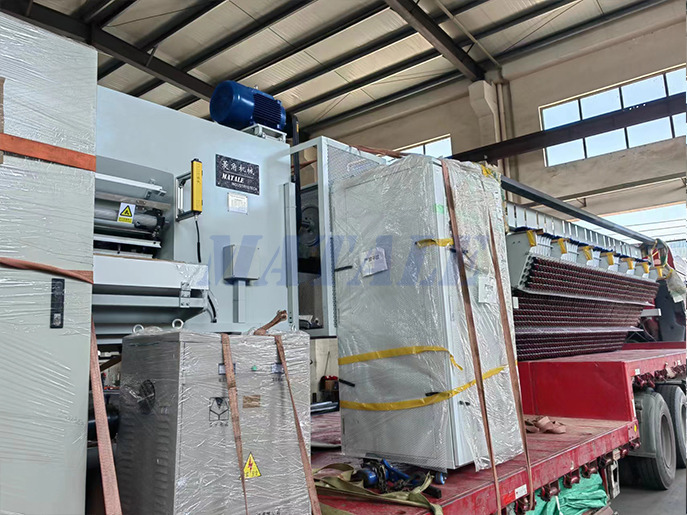

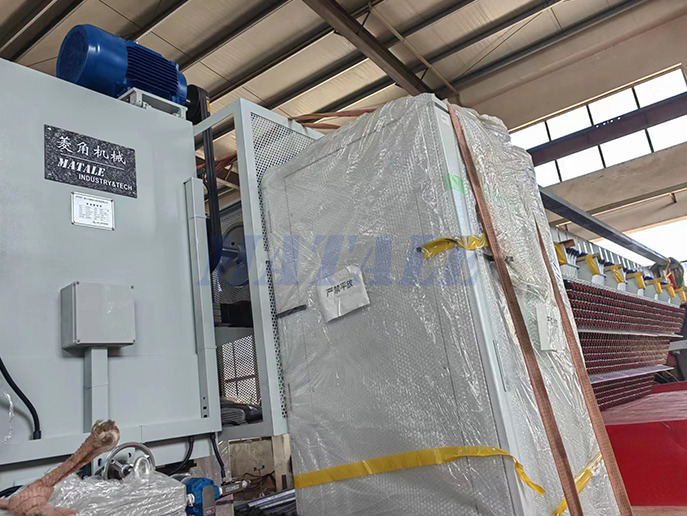

Container Loading
 |  |
 |  |
1. Full set of Clean On Board Bill of Lading
2. Commercial Invoice
3. Packing List in triplicate (detailing gross/net weight, dimensions, and contents per package).
4. Certificate of Origin (issued by a competent authority)
5. Insurance Policy (for CIF terms).
Service
Pre-sale service
1. Free inquiry about machine parameter details
2. Can provide professional suggestion on tufting machine model choosing.
3. Full procedure solutions to setting up a new carpet/rug factory
4. Can provided specific Machine photos and video
5. Necessary international shipping documents
After-sale service
1. We will provide professional technicians to install and debug the machine at the factory.
2. Provide Video technical support at anytime
3. Chat with us online anytime for support if the machine malfunctions or if client don't know how to operate it.
4. Free spare parts, we can provide spare parts needed for some machines
5. We will carry out regular preventive maintenance to ensure the reliability and service life of the machine.
6. Due to the equipment malfunctions, if necessary, we will promptly provide on-site troubleshooting and maintenance services.
7. We will provide a service report after each visit, documenting the work done and any suggestions.
