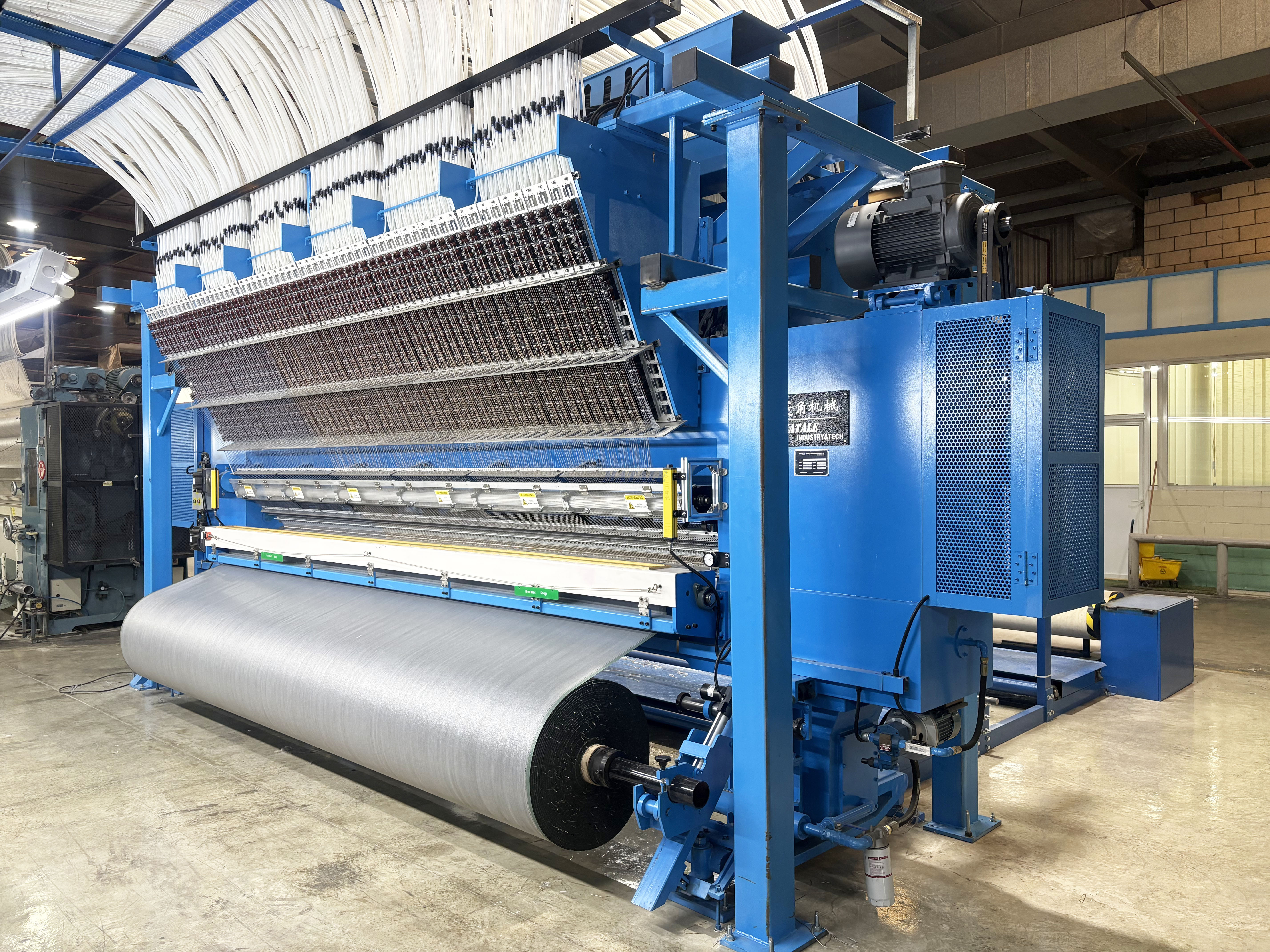

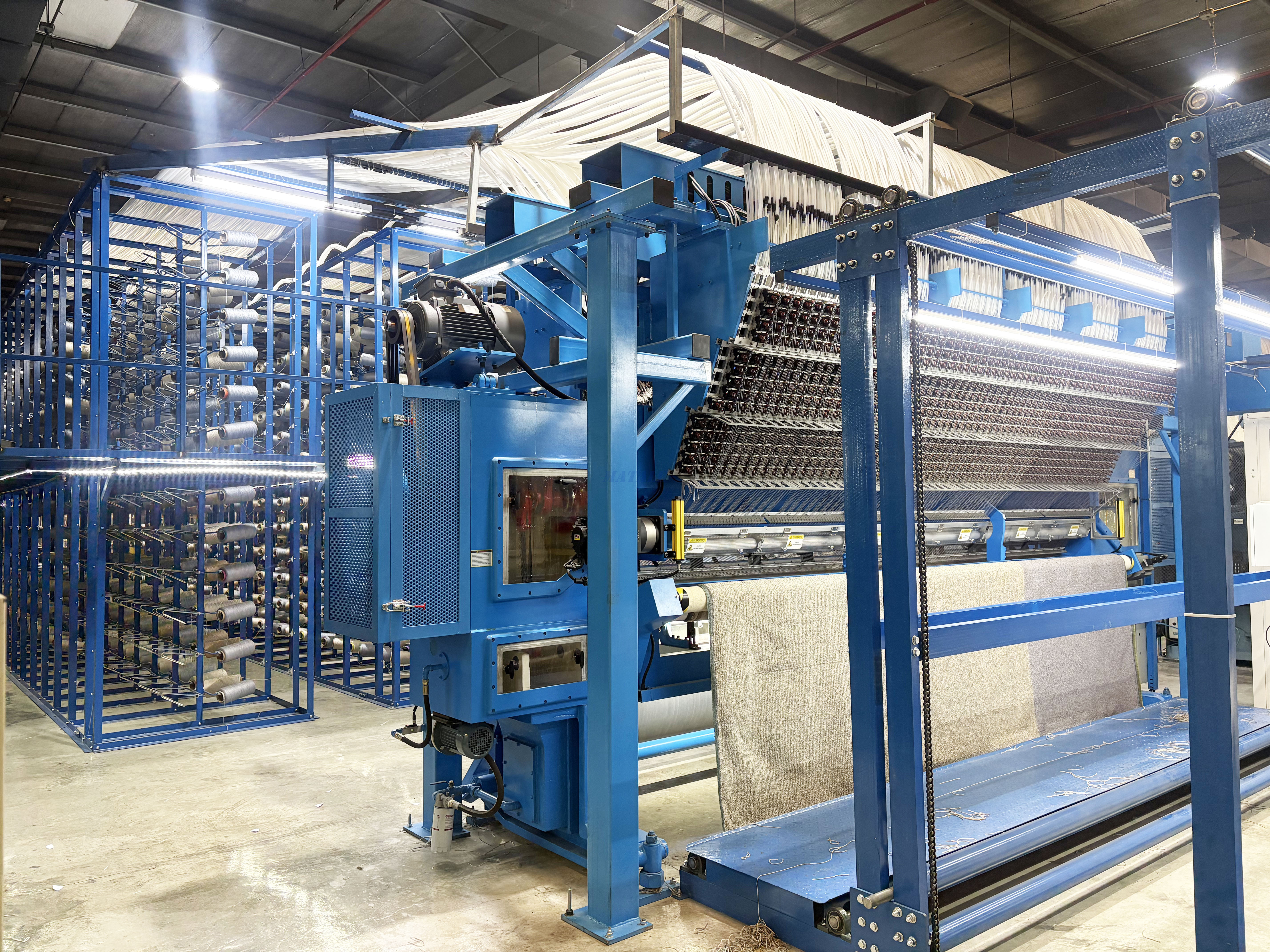

M-color Tufting machine

Patterned loop pile tufting machine Parameters

1. Machine size(LW*H):5500*1500*3000(2m)

                                             7700*1500*3000(4m)

2. Working width: 2m or 4m

3. M/C gauge: 5/32", 1/8", 1/10", 1/12"M-color Plus

4. Total power ref.: 45KW(2m) 60KW(4m)

5. Mechanical speed: 800-1000 RPM

6. Pile height: 2.5-9 mm

7. Stitch rate: 25-50 stitches /10cm

8. Primary back loading: cylinder automatic control

9. Primary back fabric feeding: double servo motor control

10. Gauge parts: Groz Germany

11. Adjustable bed plate

: flexible manual control.

12. Standard power cabinet and operation cabinet with 12.5"touch screen

13. Industrial computer with latest windows system

14. Puller roller: servo motor control

15. Sliding: single needle bar with servo motor control

16. Yarn feeding: individual servo motor control

Machine Feature

• Stable structure with no internal stress

• deformation by using cast frame and overall annealing treatment.

• Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

• Equipped with lifting rings , easy for movement.

• Air cylinder device for backing roll loading.

• High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

• By using 4 individual point s crews , machine can stand on all types of floors .

• Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

• Overload protection, cover protections , pull wire emergency stop switch.

• Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

Infinity Pattern Multi Loop Tufting Machine Details

Infinity Pattern Multi Loop Tufting Machine Product

Packing and shipping

1. Wrapping film with steel wire fixed for main machine

2. Special units will be custom-made in wooden crates according to requirements.

3. Wooden case or carton for small parts packing.

WARRANTY:

1. Warrant for Electrical parts: 1 year, customer bear courier/airfreight charge

2. Warranty for Control Panel: 1 year

3. Mechanical parts (not including consuming parts) 1 year

FAQ

Q1: What is your minimum order quantity?

A1: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

Q2: What is the delivery time of your machine?

A2: In general, the delivery time of our machine is about 60~90 days, customized machine will be delivered as the negotiation with our clients.

Q3: Can the machine be customized as our need?

A3: Surely our machine can be customized as your need.

Q4: As the shipping period will take long time, how can you make sure the machine won’t be broken?

A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

Q5: May i know which payment will be accepted by your company?

A5: 30% deposit paid by T/T, balance paid by T/T or L/C are available. Can discuss when placing order.

Q6: About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

A6:The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.

Q:After we placing an order, will you arrange the installation of the machine at present?

A:If you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.

Q:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

 If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.
