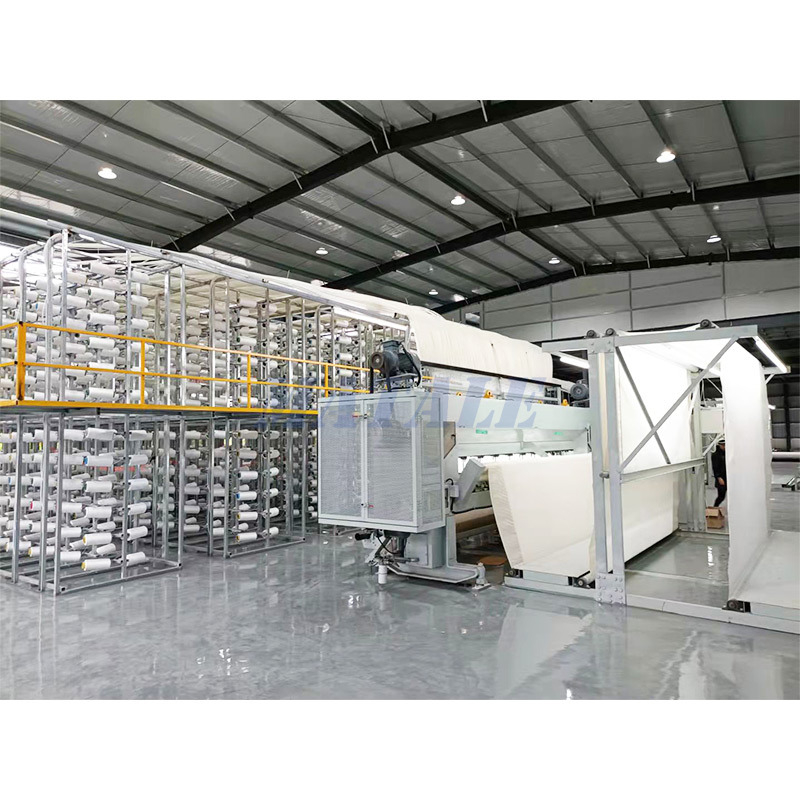

Parameters
Machine size(LW*H):5400*1500*2500(2m)
7500*1500*2700(4m)
8000*1500*2700(5m)
2. Working width: 2m,4m or 5m
3. M/C gauge: 5/64", 1/12", 1/10"，1/8"，5/32", 3/16"etc. all regular gauges.
4. Main structure: cast frame and six position foot screw ensure machine stability
5. Total power ref.: 40-60KW
6. Mechanical speed: 1200 RPM(loop),1000 RPM(cut)
7. Pile height and stitches: various as per gauge
8. Primary back roller loading: cylinder automatic control
9. Primary back fabric feeding: double servo motor control
10. Gauge parts: both Groz and China made available.
11. Adjustable bed plate: flexible manual control.
12. Standard power cabinet and operation cabinet with 12.5"touch screen
13. Industrial computer with latest windows system
Machine Feature
Stable structure with no internal stress
deformation by using cast frame and overall annealing treatment.
Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
Equipped with lifting rings , easy for movement.
Air cylinder device for backing roll loading.
High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
By using 4 individual point s crews , machine can stand on all types of floors .
Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
Overload protection, cover protections , pull wire emergency stop switch.
Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.
Plain Cut Pile Tufting Machine Product for mats and rugs
 |  |  |

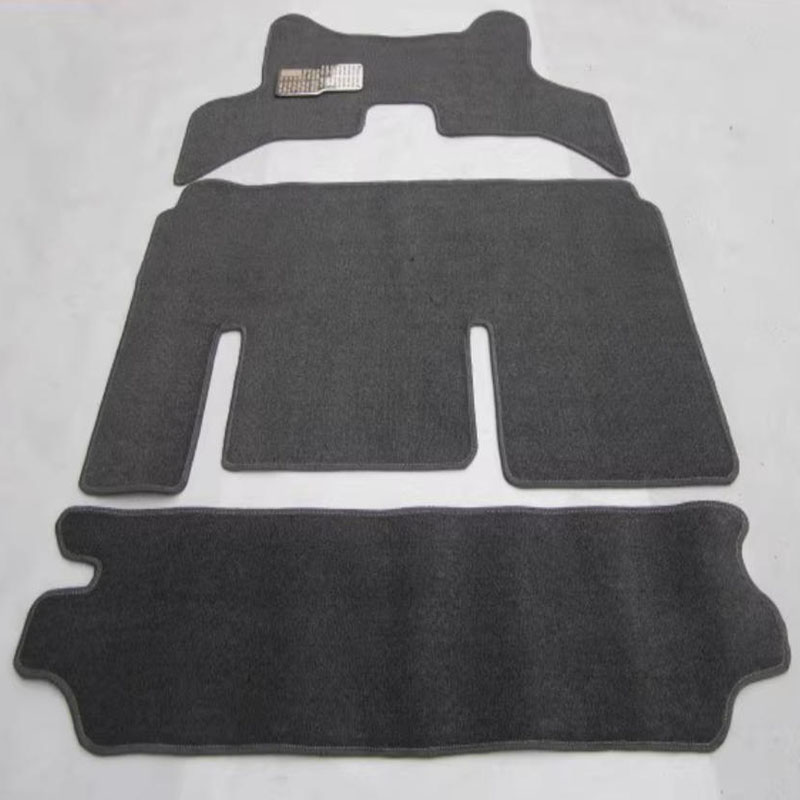

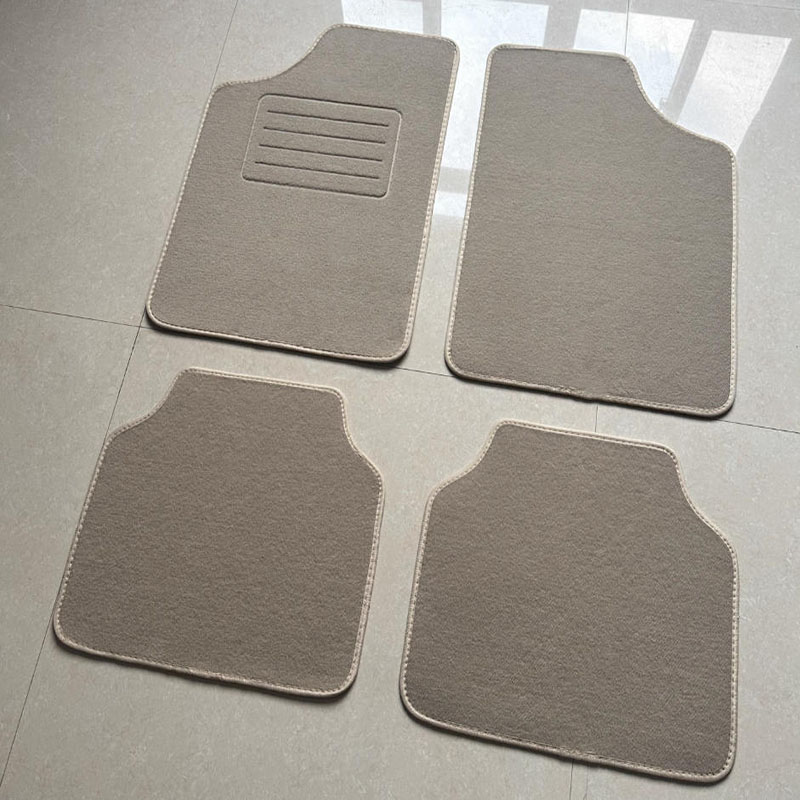

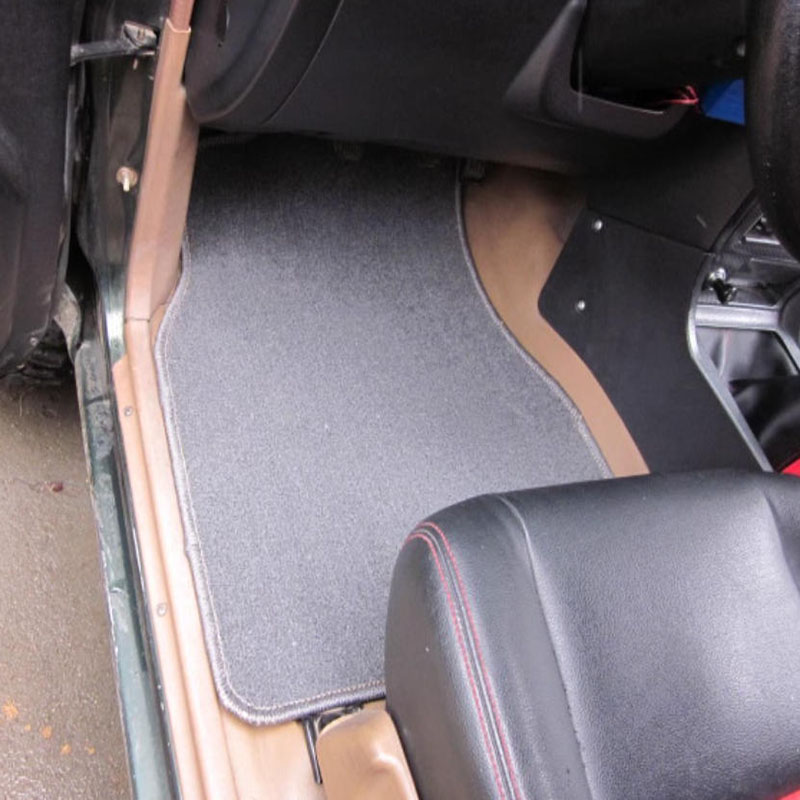

Plain Cut Pile Tufting Machine Product for automotive carpets

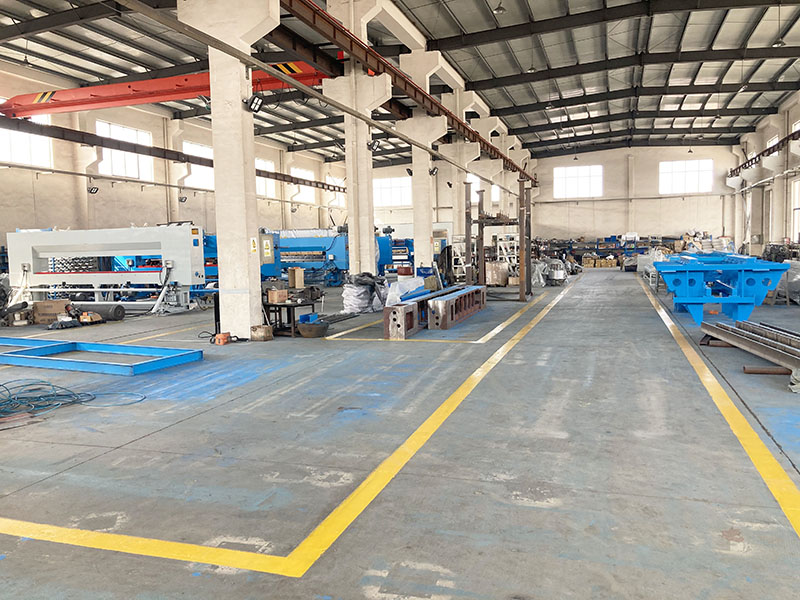

Our Company
Matale, proudly made in China, will always be committed to the research and development on all unique tufting machines and ancillary equipment. Our reliable product quality standard system have brought customers worldwide and we will continue our reputable to meet the market demands. Matale has full range of tufting machines from basic plain loop, plain cut series, multi loop series, LCL FRS series, ICN series and other patterning tailer-made machines for all applications from wall to wall, residential and contracted tiles.
