Parameters
Machine size(L*W*H):5400*1500*2500(2m)
7500*1500*2700(4m)
Working width:2m,4m or 5m
M/C gauge:5/64",1/12",1/10",1/8",5/32",3/16" etc.all regular gauges.
Main structure:cast frame and six position foot screw ensure machine stability
Total power ref.:40-60KW
Mechanical speed:1200 RPM (loop),1000 RPM(cut)
Pile height and stitches:various as per gauge
Primary back roller loading:cylinder automatic control
Primary back fabric feeding:double servo motor control
Gauge parts:both Groz and China made available.
Adjustable bed plate:flexible manual control.
Standard power cabinet and operation cabinet with 12.5"touch screen
Industrial computer with latest windows system
Optional:
Puller roller with servo motor control
Jute mover
Sliding needle bar controlled by servo motor and cylinder
Yarn break sensor

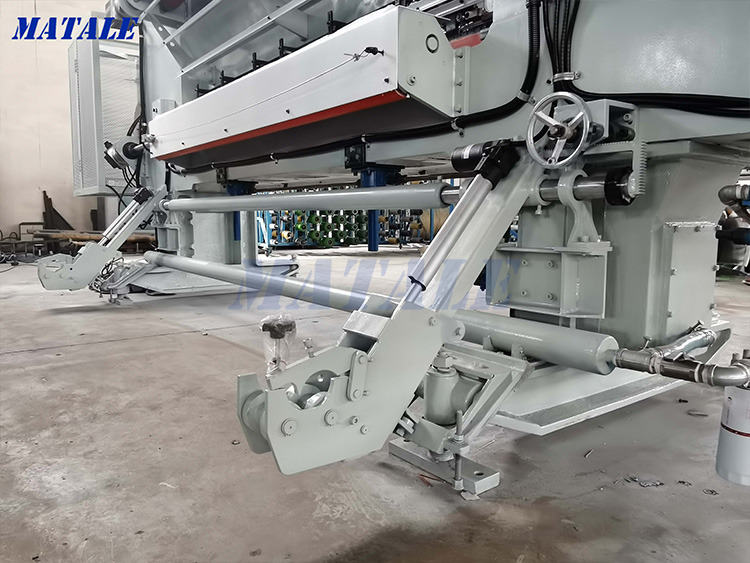

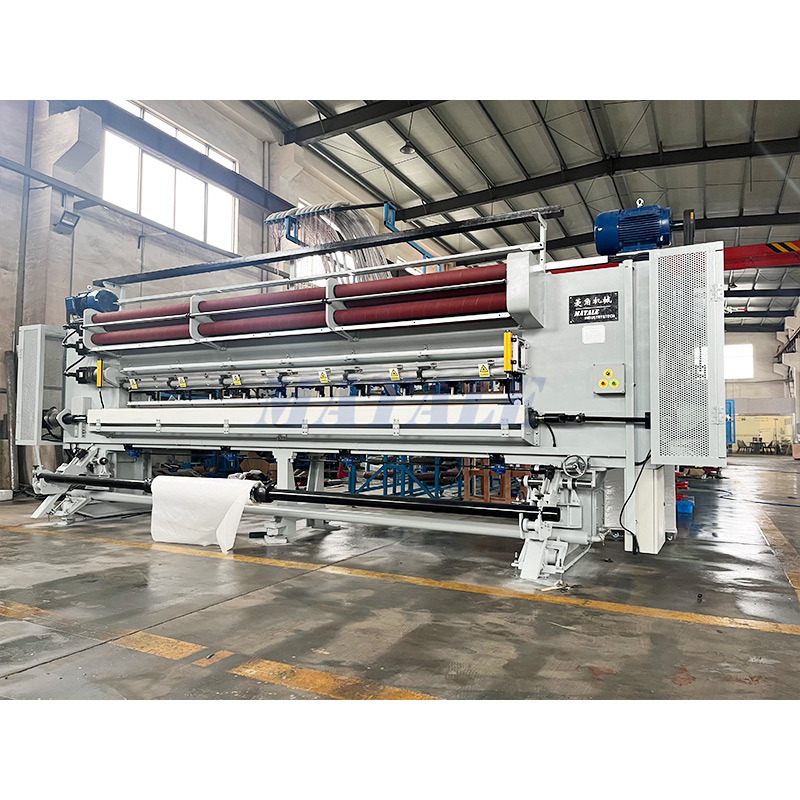

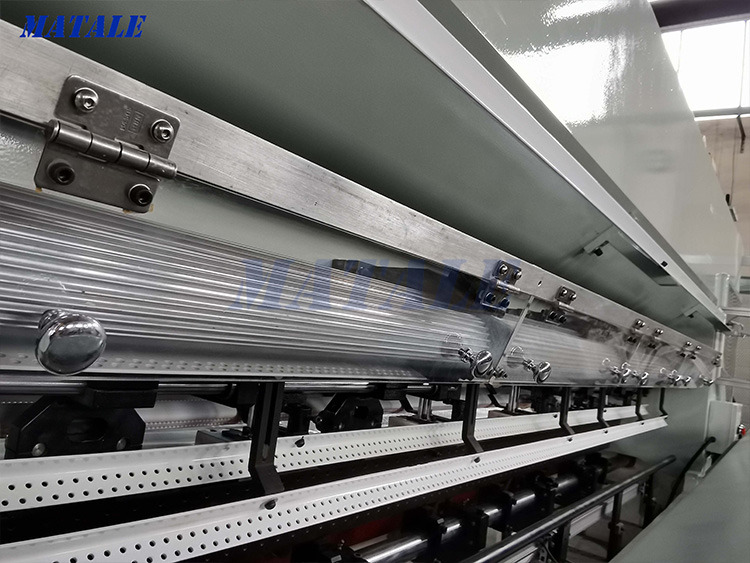

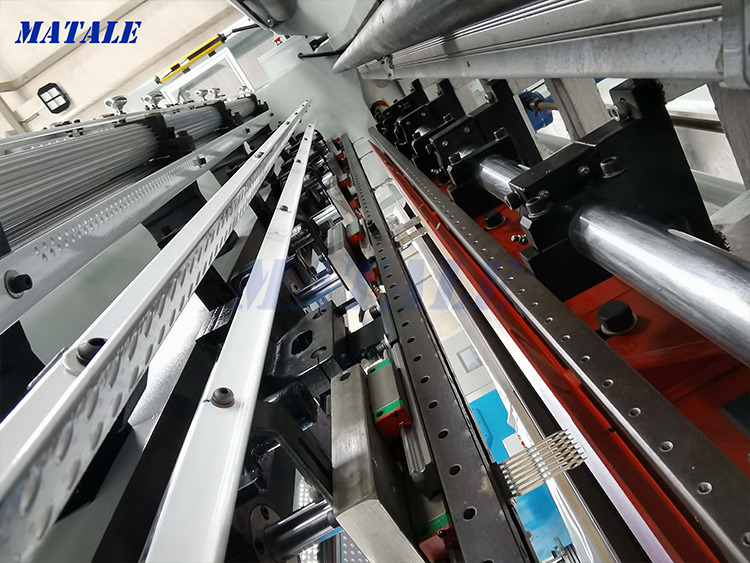

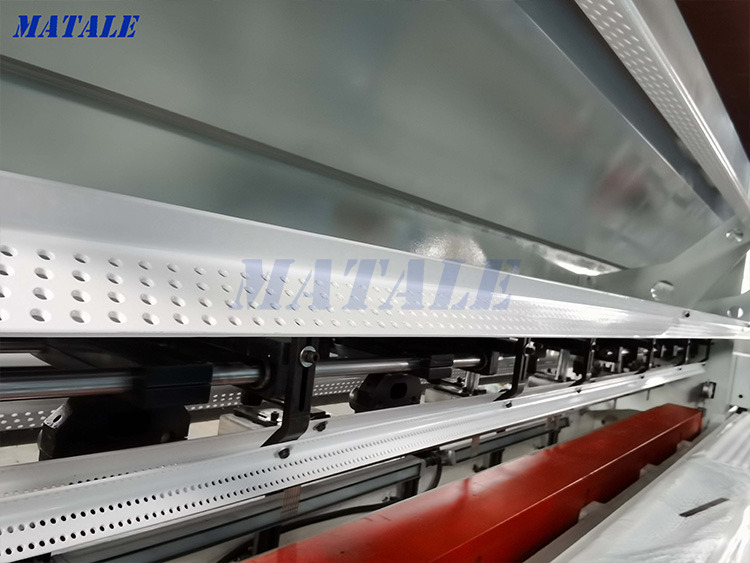

Loop Pile Tufting Machine Detail
 |  |  |
 |  |
Application
This Plain loop pile carpet tufting machine from Matale Industry& Tech have won a huge market share and a good reputation. It widely used in carpet tiles, wall-to-wall carpets, printed carpets, rugs and automotive industry.
 |  |
 |  |
Machine Feature
Stable structure with no internal stress deformation by using cast frame and overall annealing treatment.
Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
Equipped with lifting rings , easy for movement.
Air cylinder device for backing roll loading.
High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
By using 4 individual point s crews , machine can stand on all types of floors .
Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
Overload protection, cover protections , pull wire emergency stop switch.
