Parameters
1. Machine Size:
2m L*W*H7.8*2.4m*3.3m
4m L*W*H6*2.4m*3.3m
2. Working width: 1.25m or 2m or 4m
3. Gauge: 1/8" or 5/32"
4. Loop pile height range: 6-22mm
5. Mechanical speed: 600RPM
6. Stitch density: 25-60 stitches/10cm
7. Total power: 2m 30kw
4m 40kw
8. Optional sliding needle bar or jute mover
9. Servo motor + planetary reducer feeding of primary back
10. Puller roller controlled by servo motor
11. Pattern control software
12. Operation setting on touch screen
Machine Feature
LCL tufting machine,Stable structure with no internal stress
deformation by using cast frame and overall annealing treatment.
Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
Equipped with lifting rings , easy for movement.
Air cylinder device for backing roll loading.
High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
By using 4 individual point s crews , machine can stand on all types of floors .
Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
Overload protection, cover protections , pull wire emergency stop switch.
Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

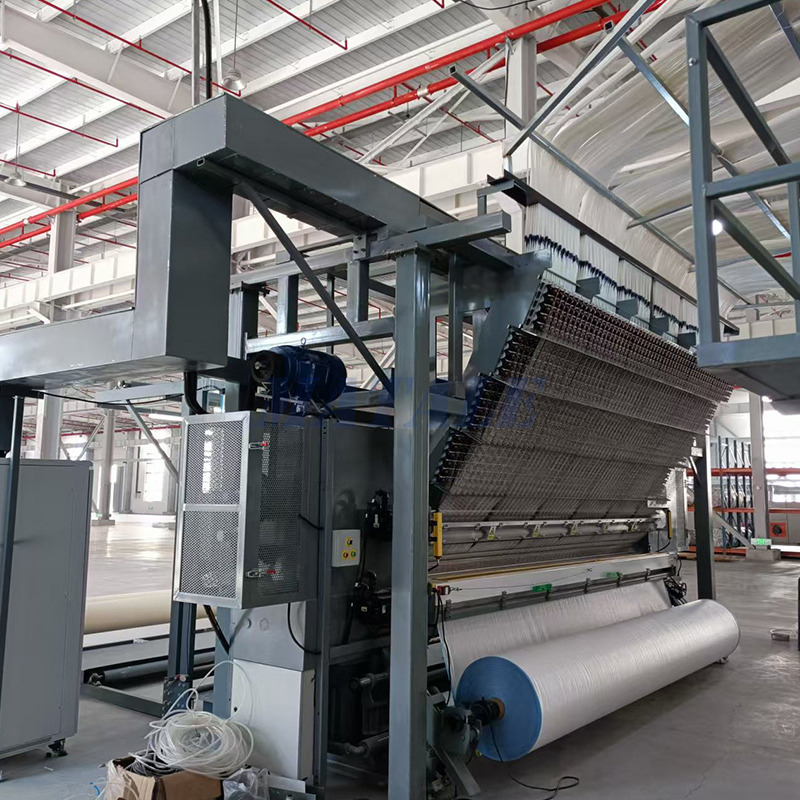

High Cut Multi Loop Tufting Machine Product
 |  |
WARRANTY:
1. Warrant for Electrical parts: 1 year, customer bear courier/airfreight charge
2. Warranty for Control Panel: 1 year
3. Mechanical parts (not including consuming parts) 1 year

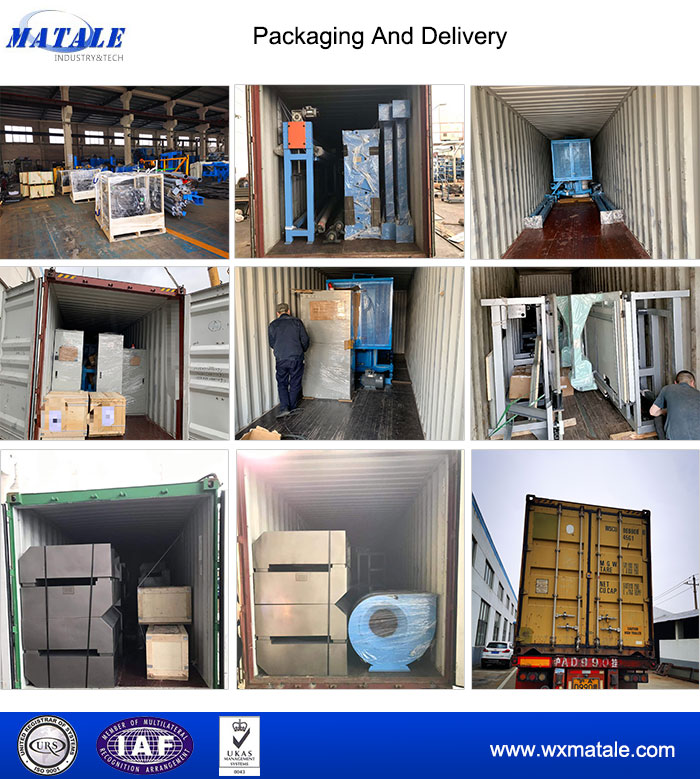

Packing and shipping
Packing details
1. Standardexport packing is provided for this machine.
2. s tufting machine requires 1x40HQ + 1x20GP containers for loading.
Test running before shipping
1. Strictly inner inspection before loading
2. Loading photos or videos provided
