Parameters
Machine size(L*W*H):8600*1500*2500(4m)
Working width:4m
M/C gauge:1/5+1/5(both sides),1/4+1/4(both sides)
Main structure:cast frame and six position foot screw ensure machine stability
Total power ref.:45KW(4m)
Mechanical speed:600 RPM
Pile height:2.5-9mm
Stitch rate:25-60 stitches/10cm
Primary back roller loading:cylinder automatic control
Primary back fabric feeding:double servo motor control
Gauge parts:both Groz and China made available.
Adjustable bed plate:flexible manual control.
Standard power cabinet and operation cabinet with 12.5"touch screen
Industrial computer with latest windows system
Puller roller:servo motor control
Sliding:double needle bar sliding,max.Max.15 needles on left or right
Yarn feeding:servo control 2+2 or 3+3 or 4+4

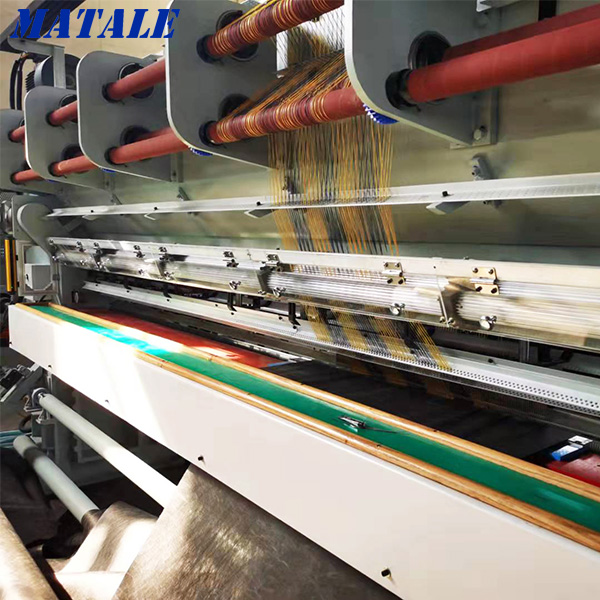

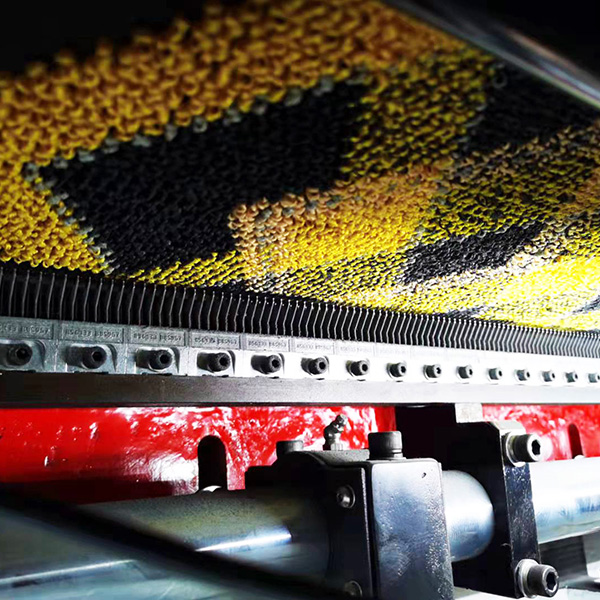

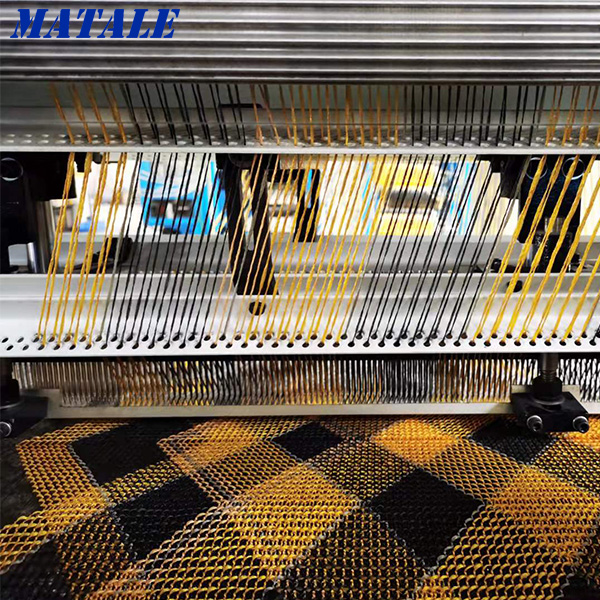

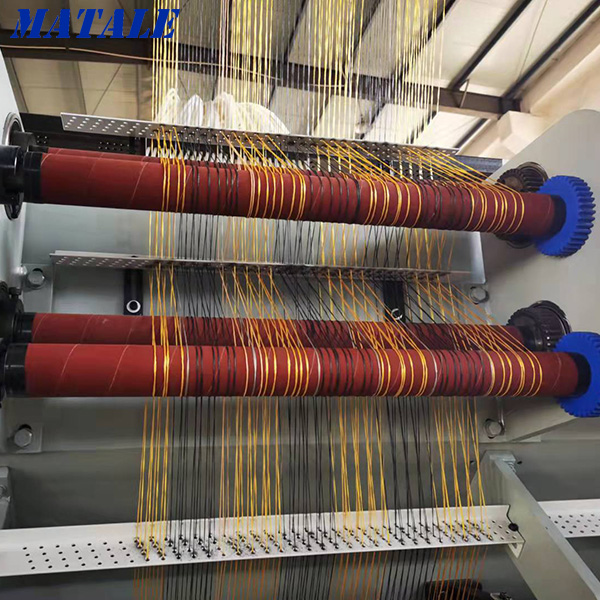

Graphic Tufting Machine Details
 |  |  |
 |  |

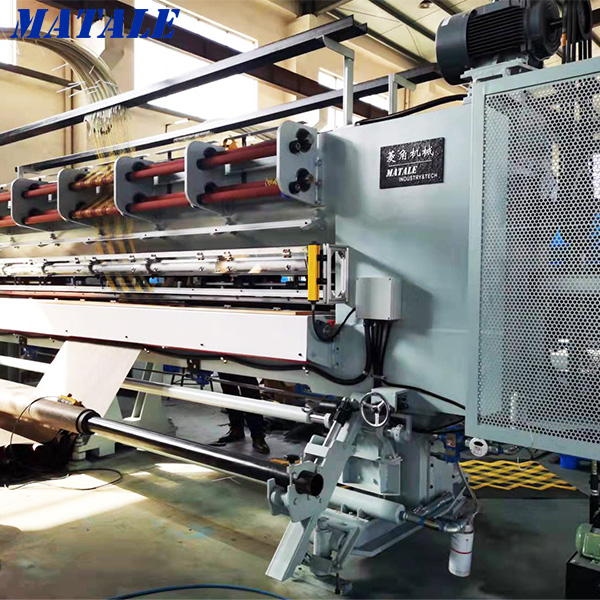

Graphic Tufting Machine Product
 |  |  |
 |  |

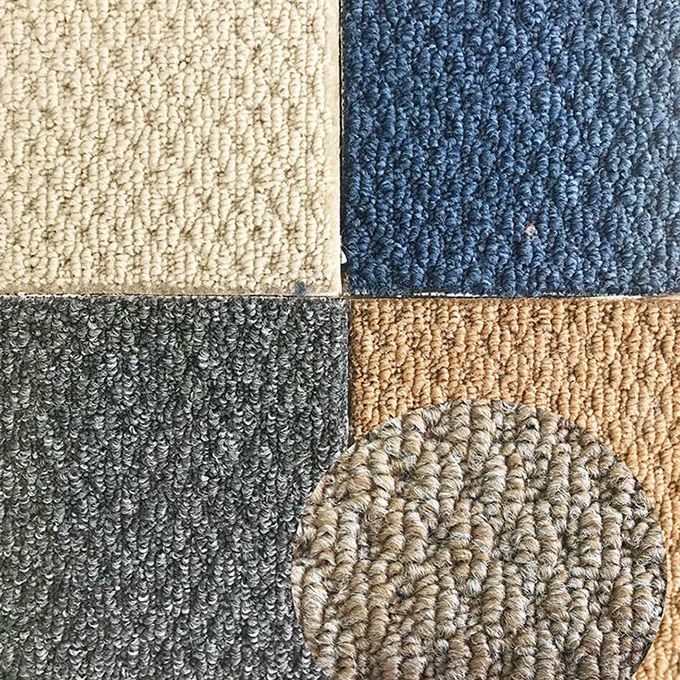

Application
This model of Graphic tufting machine is specially designed for carpet tile and wall to wall carpet, with good stability and high output.
1. Full set of Clean On Board Bill of Lading
2. Commercial Invoice
3. Packing List in triplicate (detailing gross/net weight, dimensions, and contents per package).
4. Certificate of Origin (issued by a competent authority)
5. Insurance Policy (for CIF terms).
FAQ
Q1: What is your usual port of shipment?
A1: Usually Shanghai Port.
Q2: Is it possible to visit the factory for inspection before the goods are ready?
A2: Yes, we can assist with the invitation letter application.
Q3: If we encounter technical difficulties, can you provide timely support?
A3: Our engineers will respond to your inquiries at any time.
Q4: Which countries do you typically export your machines to?
A4: Japan, Turkey, Egypt, Dubai, as well as countries in the Middle East and Southeast Asia.
