Aesthetic appeal means nothing if a commercial carpet falls apart under heavy foot traffic. Imagine the flooring in a bustling airport terminal or a busy corporate lobby. It endures thousands of rolling suitcases, heavy footfalls, and aggressive rotary cleaning machines every single day. To survive this relentless mechanical stress, the carpet requires an exceptional "tuft bind." What exactly is that? It is the specific physical force required to pull a single yarn completely out of the backing. Without a robust tuft bind, expensive flooring will quickly unravel, pill, or fray.

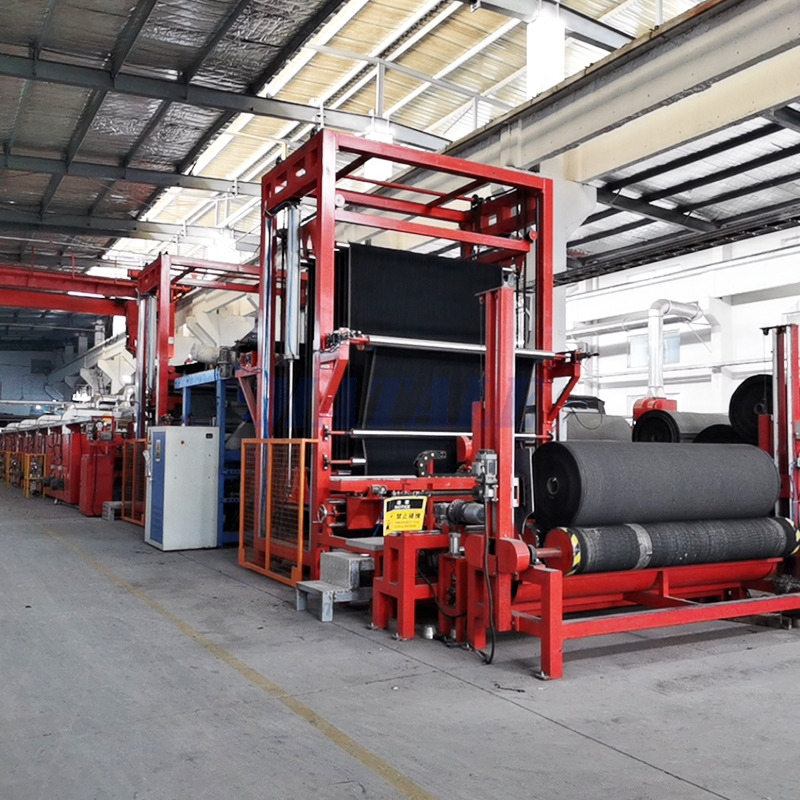

The foundational secret to preventing this premature failure lies in the precoating process. By applying a specialized liquid adhesive directly to the back of the tufted substrate, manufacturers permanently anchor the loose yarns into place. At the operational heart of this chemical and mechanical marriage is the carpet pre coating line. This highly engineered manufacturing system applies, presses, and cures the adhesive compound with pinpoint accuracy. In this comprehensive guide, we will explore the material science behind adhesive application, examine how it directly improves durability, and highlight why upgrading your machinery is critical for long-term production success.
In the realm of industrial flooring production, tuft bind represents a quantifiable physical force. Engineers typically measure it in pounds-force or Newtons. It calculates the exact effort needed to extract a single tuft from the primary structure. During the tufting phase, hundreds of rapidly moving needles punch yarn through a woven polypropylene or non-woven polyester backing. At this stage, the filaments are entirely loose. They are held only by the friction of the surrounding fabric. Without the introduction of a binding agent to secure these loops, basic mechanical stress like vacuuming would easily pull the carpet apart.
Different installation environments dictate wildly different durability tolerances. Regulatory bodies have established standardized testing methods like ASTM D1335 to ensure consumer protection and product reliability. For standard residential settings with moderate foot traffic, a minimum tuft bind of 3 to 5 pounds of force is generally acceptable. Commercial sectors such as hospitality venues, schools, and aviation demand a much higher threshold. These environments often require 8 to 10 pounds of force or more. Consistently meeting these stringent metrics on a mass-production scale—often across a 4-meter wide roll running at 20 meters per minute—is practically impossible without a highly calibrated coating process.
The fundamental objective of any precoating application is deep and consistent penetration via capillary action. As the raw carpet web travels through the machinery, the liquid compound must not merely sit on the surface. It needs to seep deeply into the microscopic voids between the individual filaments of each yarn bundle. Once this liquid cures into a solid elastomer, it acts like a flexible microscopic anchor. If penetration remains shallow, the core of the yarn bundle stays dry and unsecured. This inevitably leads to a defect known as "fuzzing," where individual fibers shed over time.
The success of this chemical anchoring heavily relies on the mechanical forces applied by the production equipment. High-grade latex carpet precoating equipment utilizes precision applicator rollers and heavy-duty doctor blades to physically drive the viscous compound into the substrate. This requires a delicate operational balance. If the mechanical pressure is too light, the liquid fails to penetrate. If the pressure is too aggressive, the adhesive will strike completely through the primary backing, ruining the aesthetic of the face pile and wasting expensive materials.
Operating as the core module, the applicator section handles the initial transfer of the liquid emulsion. Most industrial setups rely on a lick roller system or a slot-die configuration. Picture a lick roller continuously drawing from a precisely leveled pan of latex, transferring a specific volume to the underside of the moving carpet. Advanced tufted carpet precoat machine setups feature highly sensitive pneumatic or servo-driven controls. Operators can adjust roller gaps with sub-millimeter precision on the fly. This seamless adjustment accommodates variations in pile height or backing density without halting production.
Immediately following the mechanical application, the damp carpet enters the thermal curing zone. Since most precoat adhesives are water-based emulsions, the primary job of the oven is to rapidly evaporate the moisture while elevating the remaining polymer particles to their specific cross-linking temperature. A well-engineered oven utilizes multiple temperature zones—often ranging from 120°C to 160°C—and forced convection to guarantee uniform heat distribution. Poor airflow creates uncured wet spots. These spots drastically compromise tuft bind in localized areas and serve as ground zero for future delamination.
Recent market analyses reveal a significant paradigm shift in how manufacturers approach carpet durability and production efficiency. Driven by strict environmental regulations and the rising cost of raw materials, the sector is rapidly pivoting toward sustainability and smart automation. Carpet manufacturers face stricter VOC emission regulations globally. Consequently, the industry is adopting bio-based and low-VOC latex formulations. These eco-friendly adhesives improve indoor air quality but often feature narrower curing windows and different viscosity profiles compared to traditional compounds.
To handle these complex chemical profiles, data-driven automation is no longer optional. Modern facilities are abandoning manual trial-and-error calibrations. Instead, they deploy IoT-enabled sensors for real-time moisture and coat weight monitoring. This industry-wide shift proves that meeting modern tuft bind standards requires adaptive, intelligent coating lines capable of processing sustainable materials without sacrificing mechanical strength.
One of the most persistent hurdles on the factory floor is maintaining an identical coating weight across the entire length and width of a massive carpet roll. Older machinery frequently suffers from roller deflection. This causes the center of the applicator to bow slightly under pressure, depositing excess latex on the outer edges while starving the center. Modern systems combat this by utilizing precision-ground, deflection-resistant rollers paired with automated scanning sensors. This guarantees an even spread and a uniform tuft bind from edge to edge.
| Production Feature | Legacy Equipment | Modern Automated Lines |
|---|---|---|
| Tension Control | Manual friction brakes, prone to stretching | Closed-loop servo motors for zero-distortion transport |
| Coating Uniformity | High edge variance due to roller deflection | Precision-ground rollers with real-time scanning sensors |
| Curing Efficiency | Single zone, uneven heat distribution | Multi-zone forced convection for perfect cross-linking |
| Recipe Management | Operator guesswork and manual adjustments | PLC integration with pre-validated product recipes |
Beyond securing the yarn, the precoat layer serves a crucial secondary purpose. It acts as the chemical primer for the secondary backing. If the initial latex layer is uneven, porous, or poorly cured, the secondary adhesive will lack a stable substrate to grip. By ensuring a smooth, fully sealed, and perfectly cured precoat, advanced coating equipment maximizes the surface area for the secondary adhesive. This structural synergy virtually eliminates the risk of edge curling, fraying, and catastrophic separation during wall-to-wall installation.
In the broader landscape of floor covering manufacturing, Styrene-Butadiene Rubber latex continues to dominate as the preferred precoating compound. Engineers favor it for its exceptional tensile strength and post-cure flexibility. Carpets must endure being tightly rolled for shipping, unrolled, stretched, and violently kicked into place during installation. Latex absorbs this mechanical shock without snapping or cracking. While specialty healthcare applications might utilize polyurethane barriers, traditional latex delivers the most reliable performance-to-cost ratio for high-volume broadloom production.
The physical mechanics of yarn encapsulation dictate that fluid viscosity must be perfectly calibrated. If the latex is overly viscous, it will stubbornly sit on top of the primary backing, resulting in a disastrously low tuft bind. Conversely, a compound that is too thin will easily succumb to capillary action, bleeding entirely through the backing and hardening the face pile. Today's automated dosing systems continuously monitor and adjust the addition of thickeners. This ensures the viscosity remains locked at the exact target throughout multi-shift runs.
When a production batch fails a quality assurance pull test, inadequate latex penetration is almost always the root cause. Pinpointing the exact variable requires systematic troubleshooting. Common operational errors include running the line at speeds that outpace the applicator's physical capacity to press the liquid into the yarn. Other culprits include utilizing an incorrectly mixed compound or applying insufficient pneumatic pressure at the scraper blade. Sometimes, heavily oiled spinning lubricants left on the yarn create a chemical barrier that repels the water-based latex.
To eliminate these production flaws, leading manufacturers invest heavily in multi-functional systems equipped with Programmable Logic Controllers. By integrating these controllers, operators save specific, pre-validated recipes for various carpet profiles. When transitioning from a lightweight residential cut-pile to a dense commercial loop, the computer automatically recalibrates line tension, roller speeds, and thermal zones. This removes human guesswork, drastically reduces material waste, and guarantees that every linear foot achieves a flawless tuft bind.
Tuft bind remains the truest indicator of a carpet's structural integrity. It relies entirely on the successful application of a precoat adhesive to lock loose yarn bundles permanently into the primary backing. Achieving the strict durability standards required for heavy daily foot traffic demands more than just a high-quality latex compound. It requires state-of-the-art mechanical precision.
Ready to eliminate tuft bind failures and optimize your production floor? Upgrading your machinery is the most definitive strategy to minimize costly waste and deliver a superior product to the market. Whether your facility produces plush residential flooring or rugged commercial broadloom, we encourage you to explore the advanced, multi-functional coating solutions at Matale to find the exact equipment configuration that meets your high-volume manufacturing needs.
For heavy commercial environments, industry testing standards typically mandate a minimum tuft bind of 8 to 10 pounds of force. In contrast, standard residential carpets usually require a lower threshold of around 3 to 5 pounds of force.
A pre coating line is specifically engineered to apply the initial layer of adhesive, which penetrates and locks the yarns into the primary backing. A secondary backing line subsequently applies another layer of adhesive to attach an outer stabilizing material like jute or ActionBac. Many modern facilities combine both of these critical steps into a single continuous manufacturing process.
Yes. Advanced machines are built with highly adjustable applicator rollers, dynamic gap controls, and closed-loop tension systems. This flexibility allows operators to seamlessly process everything from low-profile dense commercial loops to thick, high-pile residential shags without crushing or damaging the delicate face yarns.
Styrene-Butadiene Rubber latex is the global industry standard because it provides the optimal balance of high tensile bonding strength, post-cure flexibility, and economic viability. It cures consistently in standard convection ovens and ensures excellent long-term tuft bind without making the carpet too rigid for installation.
Manufacturers and testing laboratories use a specialized tensile testing machine following the ASTM D1335 protocol. A specific clamp grips a single yarn tuft, and the machine pulls it upward at a constant speed until the tuft completely pulls out of the backing. The peak force recorded during this extraction is the official tuft bind measurement.
Delamination occurs when the secondary backing separates from the primary carpet structure. This is often caused by a poor precoating process where the initial latex layer is under-cured, unevenly applied, or lacks the proper viscosity to create a smooth, solid primer for the secondary adhesive to bond with.
