Precise mechanical tolerances directly dictate final textile quality in tufted production. Cutting mechanics represent the primary failure point on the floor. When blades and loopers fall out of synchronization, the entire system degrades rapidly. Improper knife clearance acts as a hidden operational drain. It leads to frayed yarn, inconsistent pile heights, premature mechanical wear, and excessive production downtime. Operators often misdiagnose these symptoms as dull blades, leading to unnecessary component replacements while the root misalignment remains unresolved.
A standardized adjustment protocol is necessary to maintain production standards. Mastering knife clearance on a Cut Tufting Machine ensures consistent quality, reduces the frequency of blade replacements, and optimizes overall operational efficiency. Implementing this protocol eliminates guesswork. It allows operators to maintain tight tolerances and produce professional-grade textiles without constant interruptions or material waste.
Precision is Non-Negotiable: Proper knife clearance dictates the cleanliness of the cut; even millimeter deviations can cause yarn dragging or incomplete severing.
Symptom Recognition: Differentiating between a dull blade and improper clearance is critical to avoiding unnecessary parts replacement and extended downtime.
Mechanical Synchronization: Adjusting the knife requires holistic alignment, including foot position, pusher timing, and needle hole placement.
The Conversion Factor: Transitioning a machine from loop pile to cut pile (e.g., on dual-purpose models like the AK-III) requires a complete mechanical reset of the scissor clearance and looper timing.
Preventative Maintenance: Establishing a baseline clearance protocol extends the lifespan of the scissor mechanism and the machine's motor by reducing friction.
Knife clearance refers to the microscopic gap between the cutting blade and the looper within the needle channel. As the machine cycles, the looper catches the yarn pushed through the primary backing by the needle. The scissor blade then advances to sever this loop. If the gap is too wide, the yarn folds between the metal edges instead of cutting. If the gap is too tight, the metal components grind against each other, causing severe friction.
A perfect cut requires minimal friction, exact timing during the stroke cycle, and a clean severing of the yarn without pulling. The scissors must close exactly when the looper holds the yarn at maximum tension. Any delay or premature closure results in incomplete cuts. This forces the machine to drag uncut loops across the backing fabric, ruining the piece.
Understanding the mechanical relationship between these components is vital. The needle delivers the yarn, the looper holds it, and the scissors cut it. This sequence happens hundreds of times per minute. Even a fraction of a millimeter of misalignment disrupts the entire cycle. Operators must visualize this high-speed interaction to diagnose faults accurately.
Proper timing ensures the scissor blade enters the looper channel without striking the sides. The blade must travel parallel to the looper. Angular deviations cause the blade to bind, snapping the metal or stalling the motor. Maintaining this parallel alignment is the core objective of clearance adjustment.
Clearance directly dictates yarn tail length and the neatness of the finish. When the scissor timing aligns perfectly with the needle stroke, the machine leaves a uniform surface. Clearance inconsistencies lead to tassels or uneven textures. These defects require extensive post-production shearing to correct, wasting time and material.
Achieving a uniform surface on a cut pile carpet machine relies on the blade severing the yarn at the exact same point in every cycle. Industry standards recommend maintaining a short, controlled yarn tail. This prevents long, wasted tassels and ensures a clean, professional-grade finish right off the frame.
Proper clearance keeps the yarn tails consistent. It minimizes material waste and reduces the labor required for finishing. When the blade cuts cleanly, the yarn blooms correctly, creating a dense, plush texture. Ragged cuts leave the yarn ends frayed, resulting in a harsh, uneven feel.
Operators must monitor the pile surface continuously. A sudden change in texture often indicates the clearance has drifted. Catching this early prevents large sections of defective production. Consistent monitoring and adjustment guarantee the final product meets quality specifications.
Operators must recognize verifiable indicators of improper clearance before disassembling the tool. Frayed yarn ends and skipped cuts are the most common visual signs. The yarn will look chewed rather than cleanly sliced. Mechanically, poor alignment produces unusual grinding noises and increased motor heat.
If the housing feels excessively hot after a few minutes of operation, the scissors are likely binding against the looper or the needle channel. Listen to the machine. A properly aligned machine produces a smooth, rhythmic hum. A misaligned machine sounds harsh and labored, with distinct metallic scraping sounds.
Inspect the backing material. Improper clearance often causes the needle to punch larger holes than necessary, or the dragging yarn tears the fabric. These secondary symptoms confirm the cutting mechanism is failing to release the yarn cleanly.
Check the scissor blades for unusual wear patterns. Scoring on the flat side of the blade indicates it is rubbing against the looper. This metal-on-metal contact destroys the temper of the steel, ruining the blade permanently. Catching this early saves the components.
Many operators assume frayed yarn means a dull blade. This leads to premature replacements. To test whether a blade is actually dull or simply misaligned, operators should perform a manual rotation test. If the blade cuts cleanly through a single strand of yarn when actuated by hand but fails at high speed, the issue is clearance and timing, not sharpness.
Replacing blades prematurely drives up maintenance costs. Performing a standard clearance calibration takes minutes and often restores perfect cutting performance without requiring new parts. Understanding this distinction prevents wasted inventory and unnecessary downtime.
A truly dull blade will fail to cut even under manual pressure. It will push the yarn rather than slice it. Test the blade edge carefully with a piece of scrap yarn outside the machine. If it slices easily, the blade is fine. The problem lies in the mechanical alignment.
Training operators to perform this simple diagnostic test saves thousands of dollars annually in parts. It also builds mechanical competency on the floor, empowering workers to solve problems rather than just swapping parts blindly.
Converting a dual-purpose machine from loop to cut pile introduces distinct clearance challenges. The physical insertion of the scissor blade requires precise baseline synchronization with the looper. Loop pile configurations do not utilize the cutting mechanism, meaning the timing loop is entirely different.
When installing the cut pile scissor block, the operator must establish a new mechanical baseline. The blade must clear the looper without striking it, while still passing close enough to shear the yarn. Failure to calibrate this during conversion results in immediate jamming or severe damage to the needle channel.
The conversion process requires patience. You cannot simply bolt the scissor block on and start running. You must walk the machine through its cycle manually, checking the clearances at every degree of rotation. The looper used for cut pile is often shaped differently than the loop pile version, requiring specific spatial accommodations.
Document the exact settings used for both configurations. Having a written baseline speeds up future conversions. Mark the linkage arms or use a digital caliper to record the exact stroke lengths. This data removes the guesswork from the conversion process.
Always power down and disconnect the machine before performing any mechanical adjustments. Working on a live machine risks severe injury to fingers and hands. Clear the needle channel entirely. Remove all residual yarn, lint, and backing fibers using compressed air or a stiff brush.
A clean channel ensures accurate visual inspection of the microscopic tolerances between the blade and looper. Lint buildup can mask clearance issues or prevent the scissors from closing fully. Never adjust a dirty machine. You will end up calibrating the mechanism to accommodate the dirt, which will fail once the machine is cleaned.
Gather the necessary tools before starting. You will need hex keys, a small adjustable wrench, feeler gauges, and a strong flashlight. Good lighting is critical. You cannot adjust what you cannot see. Position a work light to illuminate the needle channel directly.
Secure the machine in a stable position. If working on a hand-held unit, clamp it to a workbench. If working on a floor model, ensure the casters are locked. Stability prevents accidental shifts while you are setting micro-tolerances.
Aligning the foot position directly to the stroke of the pusher mechanism establishes the foundation for accurate cutting. The foot must sit flush against the backing material, providing stable resistance as the needle penetrates. If the foot is loose or misaligned, the entire cutting geometry shifts during operation.
Place the needle hole to match the adjusted foot position. This alignment regulates the length of the cut thread extending from the needle. Proper synchronization prevents loose threads and uneven pile heights. If the foot sits too far back, the needle over-penetrates, altering the tension required for a clean scissor cut.
Adjust the pusher linkage to ensure it drives the scissors fully forward without bottoming out against the chassis. The stroke must be smooth and continuous. Any hesitation in the pusher stroke indicates binding in the linkage, which will translate to poor cutting performance.
Lock down all adjustment bolts securely once the foot and pusher are synchronized. Use thread-locking fluid on critical bolts if the machine is subject to heavy vibration. A synchronized foot and pusher provide the stable platform necessary for the scissors to operate correctly.
Rotate the primary white gear manually to complete a full 360-degree cycle. Do not use the motor for this test. Watch the needle descend through the foot. Observe the scissors entering the needle channel underneath. You must feel the mechanical resistance through your hands.
Check the closure timing carefully. The scissors should snap shut just as the looper reaches its maximum extension. Ensure the blade retracts cleanly without binding against the sides of the channel. Any resistance felt during this manual rotation indicates the clearance is too tight.
Repeat the manual rotation several times. Watch the interaction from different angles. Look for any deflection in the scissor blade as it engages the looper. Deflection means the blade is hitting something it shouldn't. Adjust the lateral position of the scissor block until the blade travels perfectly straight.
This manual test is the most important diagnostic tool you have. It allows you to catch catastrophic misalignments before the motor applies full torque. Never skip the 360-degree manual rotation test after making an adjustment.
Use feeler gauges or established visual benchmarks to set the exact distance between the cutting edges. The gap should be virtually zero, allowing the metals to pass each other with light, grazing contact. You want a shearing action, not a chopping action. The blades must slide past each other smoothly.
Once the clearance is calibrated, tighten the set screws and locking nuts securely. A loose set screw will allow the vibration of the motor to knock the scissors out of alignment within minutes of operation. Tighten the screws incrementally, checking the clearance after each turn, as the torque can shift the block slightly.
Apply a single drop of lightweight machine oil to the pivot point of the scissors after setting the clearance. This reduces initial friction and helps the blades seat together. Do not over-oil, as excess lubricant will attract lint and jam the mechanism.
Run the machine at low speed for a few seconds, then re-check the clearance. The vibration of operation often settles the components into their final positions. Make any final micro-adjustments necessary to achieve perfect shearing action.
Standard prosumer models utilize accessible, exposed linkages for adjustment. These allow users to learn the mechanics quickly but often suffer from tolerance drift under heavy vibration. Heavier-duty industrial units feature enclosed, reinforced scissor blocks designed for continuous operation.

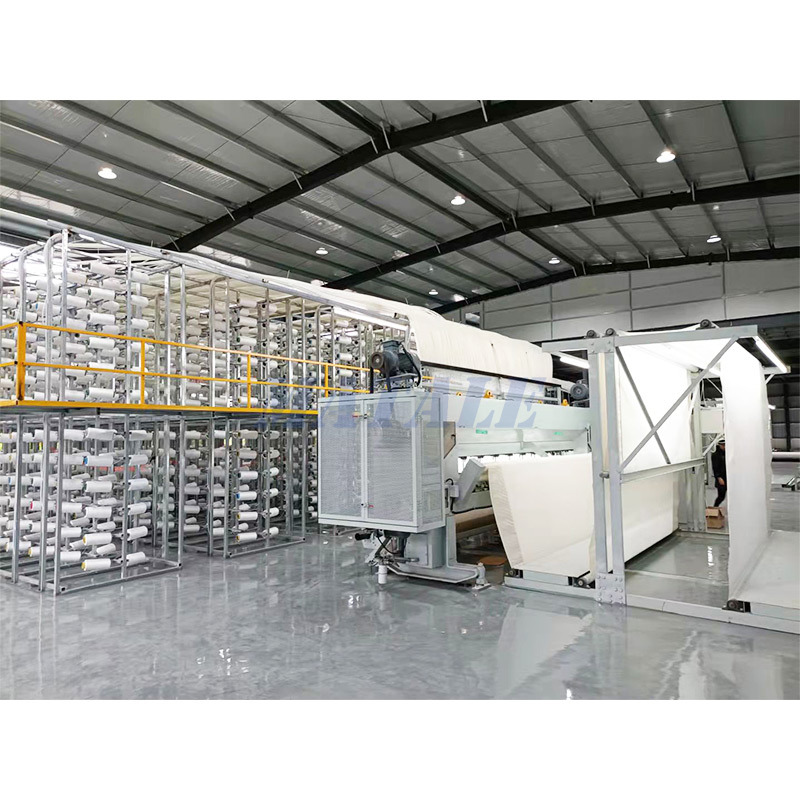

Different architectures handle vibration differently. Industrial plain cut tufting machine designs retain knife clearance settings over long production runs due to heavier casting and locking mechanisms. Prosumer models require more frequent calibration checks to maintain optimal cutting performance.
Architecture Type | Clearance Retention | Adjustment Difficulty | Vibration Resistance |
|---|---|---|---|
Prosumer (AK-Series) | Low to Medium | Moderate | Low |
Industrial Fixed-Tolerance | High | High (Requires specialized tools) | High |
Modular Cassette | Very High | Low (Swap and go) | High |
Understanding the limitations of your specific machine architecture dictates your maintenance schedule. You cannot treat a lightweight prosumer model like a heavy industrial unit. The prosumer model will shake itself out of alignment if pushed too hard for too long.
Industrial models often use hardened steel components that resist wear better than the softer alloys found in cheaper machines. This material difference directly impacts how long the knife clearance remains accurate. Invest in the right architecture for your production volume.
Belt-driven configurations offer smoother, quieter operation but introduce specific timing challenges. Belt stretch over time introduces micro-delays in scissor timing. A fraction of a millimeter of stretch alters the synchronization between the needle stroke and the blade closure.
Direct gear-driven mechanisms hold tight mechanical tolerances during high-speed operation without the risk of stretching. However, gear-driven systems transfer more vibration to the chassis. Operators using belt-driven models must schedule more frequent clearance calibrations to account for belt wear and tension loss.
Inspect drive belts regularly for fraying or missing teeth. A damaged belt will cause erratic timing, making it impossible to set the knife clearance accurately. Replace belts at the first sign of wear to maintain mechanical synchronization.
Gear-driven systems require regular lubrication to prevent backlash. Backlash is the play between the gear teeth. Excessive backlash allows the scissor timing to drift, resulting in inconsistent cuts. Keep the gears clean and properly greased.
Machines allowing granular manual adjustments provide greater control over pile characteristics. They carry a higher learning curve but allow skilled operators to fine-tune the cut for different yarn weights. You can adjust the clearance to handle thick wool or thin acrylic perfectly.
Modular, pre-tensioned scissor cassettes offer faster replacement and zero calibration time. The trade-off is a higher parts cost, as the entire cassette must be replaced when the blades dull, rather than simply sharpening or adjusting the existing components. This system favors speed over granular control.
Consider your workforce when choosing a system. If you have skilled mechanics on staff, adjustable systems offer better long-term value. If you rely on operators with limited mechanical experience, modular cassettes prevent costly adjustment errors and keep production moving.
Fixed-tolerance systems are less forgiving of variations in yarn thickness. If you frequently change yarn types, an adjustable system is mandatory. You must be able to open or close the clearance to accommodate the physical dimensions of the material.
Setting the clearance too tight introduces severe mechanical risks. Metal-on-metal friction generates extreme heat. This leads to snapped scissors, scored needle channels, and catastrophic motor burnout due to excessive resistance. Always ensure the manual rotation test feels smooth.
If you have to force the gear to turn, the clearance is too tight. Back off the adjustment screws immediately. Running a machine with over-tightened scissors will destroy the cutting block in minutes. The heat generated will warp the metal, making future adjustments impossible.
Train operators to recognize the smell of burning oil or hot metal. These olfactory cues often precede a mechanical failure. If the machine smells hot, stop immediately and check the scissor clearance.
Use a torque wrench on critical bolts if possible. Over-tightening the mounting bolts can distort the scissor block housing, throwing the internal clearances out of specification. Tighten bolts to the manufacturer's recommended torque settings.
Adjusting the physical pile height or cutting height changes the mechanical stroke length. Altering pile height shifts the entire scissor timing loop. This requires a complete knife clearance recalibration. You cannot change one without adjusting the other.
Operators should not alter pile height without intimate familiarity with the machine's geometry. Changing the stroke length without adjusting the scissor timing guarantees the blade will either miss the yarn entirely or crash into the looper, causing immediate damage.
Create a standard operating procedure for pile height adjustments. This document must explicitly state that knife clearance calibration is a mandatory step in the process. Do not allow operators to take shortcuts.
Test the new pile height on scrap material before resuming production. Verify the cut quality and listen for any unusual mechanical noises. A successful pile height adjustment requires perfect synchronization of the entire cutting assembly.
Routine maintenance checks must be based on operational hours rather than waiting for failure symptoms. Waiting for the machine to chew yarn means damage has already occurred. Log all adjustments to track machine wear.
This data helps predict when a complete scissor block overhaul is necessary, preventing unexpected downtime during critical production runs. Create a simple logbook attached to each machine. Require operators to initial the log after performing their daily visual checks.
Perform a visual inspection of the needle channel and scissors before every shift.
Conduct a 360-degree manual rotation test weekly or after every 40 hours of operation.
Perform a full mechanical calibration and lubrication every 100 hours.
Replace the scissor blades and looper after 500 hours or when manual sharpening fails to restore a clean edge.
Adhering to a strict schedule extends the life of the equipment and guarantees consistent product quality. Maintenance is an investment in production, not an interruption.
Audit current machines using the 360-degree manual rotation test to identify hidden friction and correct misalignments immediately.
Recalibrate existing inventory to baseline specifications, ensuring all units operate at peak efficiency.
Establish a standardized training protocol for maintenance staff to ensure all clearance adjustments follow strict mechanical guidelines.
Implement a mandatory maintenance logbook for each machine to track operational hours and predict component wear.
A: Perform a quick visual check daily before starting production. Conduct a full mechanical calibration every 50 to 100 operational hours, depending on the thickness and abrasiveness of the yarn being used.
A: New blades cannot compensate for improper clearance or timing. If the gap between the scissors and the looper is too wide, or the timing is delayed, the yarn will fold and tear rather than cut cleanly.
A: Some dual-purpose machines allow conversion by swapping loopers and blades. However, this requires completely resetting the scissor timing and clearance, as the mechanical stroke and baseline synchronization change entirely.
A: The foot must align perfectly with the pusher to ensure the yarn is held at the correct tension. The needle hole must match the foot to regulate the cut thread length accurately.
A: Symptoms include stiff manual gear rotation during the 360-degree test, metal-on-metal scraping sounds, excessive heat near the scissor block, and the machine struggling to cycle at normal speeds.
A: Yes. Changing pile height alters the stroke length. This necessitates re-verifying scissor timing and clearance afterward. This adjustment should only be attempted with advanced technical knowledge of the machine's geometry.
