Selecting the working width for an industrial carpet making machine is a foundational capital expenditure decision that permanently dictates product capabilities, facility layout, and production throughput. Overestimating required width leads to wasted floor space, excessive upfront costs, and inefficient changeovers. Underestimating width restricts market entry, locking a manufacturer out of the standard broadloom market, and increases post-production seaming costs. This guide provides a technical evaluation framework to determine the exact working width required based on target end-products, facility constraints, yarn creel logistics, operator ergonomics, and long-term return on investment. We will evaluate how machine span interacts with gauge parts, tension control, and downstream finishing lines to ensure your production floor operates at peak efficiency.
Product-Market Alignment: Standard broadloom requires 4m to 5m working widths, while carpet tiles, automotive carpets, and custom rugs are more efficiently produced on 1m to 3m machines.
The Creel Multiplier Effect: Machine width directly dictates the number of yarn ends required, exponentially increasing the footprint of the yarn creel, cone management, and the complexity of material handling.
Operational Flexibility: Running narrow backing on a wide machine is technically possible but highly inefficient due to uneven wear on gauge parts and wasted needle bar capacity.
Working width represents the maximum functional span of the needle bar. It defines the exact width of primary backing fabric the machine can populate with yarn in a single pass. This measurement dictates the physical dimensions of the machine frame. It also determines the required torque for the main drive shaft and the structural rigidity needed to prevent center deflection during high-speed operation.
You must distinguish industrial equipment from hobbyist tools. Handheld tufting guns are manual tools used for custom rugs on static, stretched wooden frames. An industrial carpet tufting machine operates entirely differently. It dictates continuous, automated roll-to-roll production capacity. The fabric moves continuously via spiked feed rollers while the needle bar reciprocates at high speeds, often exceeding 1,000 RPM depending on the stroke height and pattern complexity.
Working width directly interacts with machine gauge to determine mechanical complexity. Gauge indicates the distance between needles, such as 1/8 inch, 1/10 inch, or 5/64 inch. When you combine a wide working width with a fine gauge, the total number of needles multiplies rapidly. This massive parts count directly impacts routine maintenance costs, threading times, and the frequency of gauge part replacement.
Working Width | Gauge | Approximate Needle Count | Primary Application |
|---|---|---|---|
2 Meters (78 inches) | 1/8 inch | 624 Needles | Carpet Tiles, Area Rugs |
2 Meters (78 inches) | 1/10 inch | 780 Needles | High-Density Automotive Mats |
4 Meters (157 inches) | 1/8 inch | 1,256 Needles | Standard Commercial Broadloom |
4 Meters (157 inches) | 1/10 inch | 1,570 Needles | Fine Residential Broadloom |
5 Meters (196 inches) | 1/10 inch | 1,960 Needles | Specialty Wide-Span Hospitality |
The mechanical load on the main shaft increases exponentially with width. A 4-meter machine pushing 1,500 needles through woven polypropylene backing requires massive kinetic energy. The machine utilizes heavy cast-iron side frames and multiple center supports to prevent the needle bar from bowing in the middle. If the bar bows even a fraction of a millimeter, the needles will strike the loopers, causing catastrophic gauge part failure and extended downtime.
Operators must manage the stroke adjustment across this entire span. Setting the pile height requires adjusting the eccentric cams on the main shaft. On a narrow machine, this is a straightforward process. On a wide machine, technicians must ensure the stroke is perfectly synchronized across multiple push rods to maintain a uniform pile height from the left edge to the right edge.
The target market for wide-span machines includes wall-to-wall residential and commercial carpeting. Facilities catering to the hospitality sector, large office buildings, and residential housing developments rely heavily on this format. Installers demand wide rolls to minimize the number of seams required in a room.
Success in this sector requires the ability to produce standard roll widths. You must output 12-foot (3.66m), 13-foot 1.5-inch (4m), or 15-foot (4.5m) rolls without seams. Seams introduce weak points and visual defects in wall-to-wall installations. A dedicated broadloom tufting machine eliminates these issues by spanning the entire required width in a single pass.
These machines are built for high-volume commodity markets. They require massive continuous runs to justify setup times. Changing yarn colors or patterns across 1,500 needles takes an entire shift. Maintenance overhead is substantial, making short runs highly unprofitable. When you commit to a 4-meter machine, you are committing to a high-throughput business model where machine uptime and long production runs dictate your margins.
To qualify a broadloom run, operators follow a strict sequence:
Verify the primary backing roll width matches the machine span exactly, allowing for a 2-inch selvedge on either side.
Thread all 1,500+ yarn ends through the pneumatic delivery tubes from the creel to the header boards.
Perform a manual jog of the machine to ensure no needles are striking the loopers or knives.
Run a 3-meter test strip to measure pile height consistency across the left, center, and right sections of the fabric.
Engage the continuous roll take-up system and monitor the tension load cells.
Mid-width machines target modular carpet tiles, typically measuring 50cm x 50cm or 1m x 1m. They also serve the automotive floor mat sector and aviation textiles. These markets demand precise pattern execution over shorter spans and frequent color changeovers.
Success criteria for the 2m to 3m range include high agility and faster pattern changeovers. Manufacturers minimize edge waste when slitting rolls into modular tiles or die-cutting automotive shapes. The narrower span reduces the frequency of yarn breaks and allows for tighter tension control across the backing fabric.
This width offers an excellent balance between throughput and flexibility. It is ideal for manufacturers utilizing secondary backing lines optimized for modular products. You avoid the massive footprint of a broadloom setup while maintaining industrial production speeds. A 2-meter machine can easily feed a dedicated PVC or bitumen backing line for carpet tiles without creating a bottleneck.
In automotive applications, manufacturers often nest floor mat patterns to maximize material usage. A 2-meter width accommodates two standard vehicle floor mat sets side-by-side. This layout optimizes the die-cutting process downstream, reducing scrap material compared to trying to nest patterns on a massive 4-meter roll where center tension variations might distort the shape.
Narrow machines serve the market for area rugs, hallway runners, bath mats, and rapid prototyping. They are also heavily used in product development labs for sampling new yarn blends, testing different twist levels, or evaluating new primary backing materials before scaling up to full production.
Operators achieve low minimum order quantities with these machines. Rapid threading is a primary success criterion. You can change a complete color palette in a fraction of the time required for a broadloom machine. Yarn waste remains minimal, which is critical when working with expensive materials like wool or custom-dyed nylon.
These machines are highly cost-effective for niche manufacturers. They require less floor space, smaller creels, and lower electrical power. However, they are entirely incapable of competing in the broadloom sector. Attempting to seam multiple 2-meter runs together to carpet a large room results in unacceptable labor costs and poor aesthetic quality.

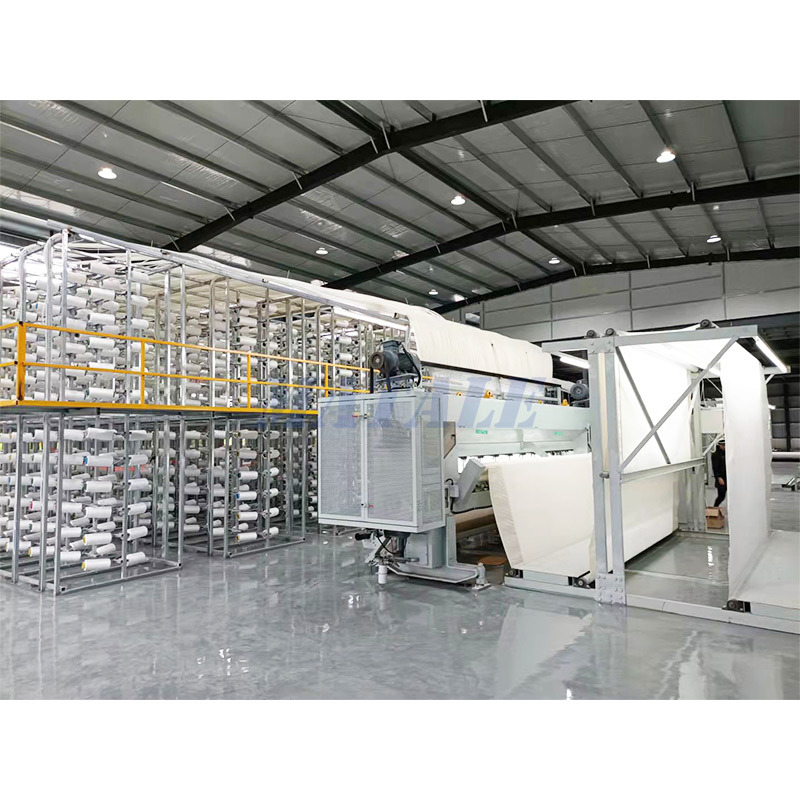

Working width dictates the physical size of the yarn creel. A 4m broadloom machine requires a significantly larger creel compared to a 2m machine. Wide setups often house 1,000 to 2,000+ yarn cones simultaneously. The creel footprint frequently exceeds the floor space occupied by the tufting machine itself.
Labor hours scale directly with machine width. Threading a full-width needle bar requires operators to pull thousands of individual yarn ends through pneumatic delivery tubes. Operators must splice yarn cones continuously to prevent machine stops. Managing yarn tension across a massive, multi-level creel structure demands dedicated personnel walking the aisles constantly to catch loose ends or collapsed cones.
Machine Width | Typical Creel Capacity | Estimated Creel Footprint (L x W) | Dedicated Creel Operators per Shift |
|---|---|---|---|
2 Meters | 800 Cones | 30 ft x 15 ft | 1 Operator |
3 Meters | 1,200 Cones | 45 ft x 15 ft | 1 - 2 Operators |
4 Meters | 1,600 Cones | 60 ft x 20 ft | 2 Operators |
5 Meters | 2,000+ Cones | 75 ft x 20 ft | 2 - 3 Operators |
The physical distance the yarn travels from the back of a large creel to the machine introduces tension variables. Yarn pulling from a cone 60 feet away experiences more drag through the anti-static tubes than yarn pulling from a cone 10 feet away. Technicians must calibrate the tension discs on the creel frame to equalize this drag, ensuring uniform yarn feed to the needle bar. Failure to equalize tension results in uneven pile heights and visible streaks in the finished carpet.
Industrial equipment is rigid and heavy. Industrial machines require fixed catwalks, elevated threading platforms, and heavy-duty safety rails. Operators must monitor the needle bar from specific vantage points to catch dropped stitches or yarn breaks immediately.
Wider machines require specialized ergonomic considerations. Technicians must safely reach the exact center of a 4-meter needle bar. They perform gauge part replacement, clear yarn jams, and conduct routine maintenance. Without proper access platforms, reaching the center causes excessive bending, physical strain, and increased downtime.
Replacing a damaged looper in the exact center of a 5-meter machine requires the technician to lie on a specialized sliding maintenance cart that rolls over the bed plate. This process is time-consuming. On a 2-meter machine, a technician can reach any part of the needle bar from the side frames or by leaning slightly over the front guard, drastically reducing maintenance time.
Your tufting machine does not operate in isolation. You must ensure local or cost-effective availability of primary backing rolls that match the machine's working width. Sourcing 4.5-meter woven polypropylene backing requires specific supplier relationships and logistics. Standard shipping containers limit the length of backing rolls, often requiring specialized transport for anything over 4 meters.
Finishing line compatibility is equally critical. You must match the tufting machine's width with downstream coating ovens, latex applicators, and shearing machines. Severe bottlenecks occur if the tufting width exceeds your finishing capacity. If you tuft at 4 meters but your latex oven only accepts 2-meter rolls, the tufting machine becomes effectively useless for continuous production.
Consider the shearing process. A carpet shear removes the microscopic variations in cut-pile height to create a perfectly smooth finish. A 4-meter shearing machine requires massive, precision-ground spiral blades. Maintaining these blades is a specialized task. If your facility cannot support a 4-meter shear, you cannot produce high-quality 4-meter cut-pile broadloom, regardless of your tufting capacity.
Purchasing a wide-span machine involves a non-linear cost increase. A 4m machine is not simply twice the price of a 2m machine. It requires exponentially heavier cast iron frames, reinforced drive shafts to prevent torque twisting, and significantly larger servo motors. The internal engineering required to maintain precision over a 4-meter span drives up the initial investment.
You must calculate the break-even point based on linear meters produced per shift. Wide machines win strictly on volume. They output massive square footage per hour. Narrow machines win on margin and agility. They allow you to take on high-margin custom orders that broadloom facilities reject due to setup costs.
When evaluating the investment, factor in the auxiliary equipment. A 4-meter machine requires a larger air compressor to handle the increased number of pneumatic threading tubes. It requires a heavier forklift equipped with a carpet pole to move the finished rolls, which can weigh over 2,000 pounds. The infrastructure required to support a wide machine scales alongside the machine itself.
As working width increases, maintaining consistent cut and loop pile heights across the entire span becomes difficult. Mechanical tolerances tighten. The center of a 4-meter needle bar naturally wants to deflect under the extreme physical load of penetrating the backing fabric thousands of times per minute. Overcoming this requires highly rigid needle bars and precise, multi-point stroke adjustments.
Narrower machines offer tighter control over varying pile heights. They handle complex high-low patterns with greater mechanical stability. The reduced span minimizes the risk of horizontal banding, ensuring a uniform surface finish from edge to edge. Servo-driven sliding needle bars, used for creating zig-zag or wave patterns, operate much more smoothly on a 2-meter span because there is less lateral mass to shift back and forth.
Pattern attachments, such as scroll systems or individual yarn control mechanisms, add significant weight to the machine. Applying these systems to a 4-meter span requires robust engineering to handle the inertia of the moving parts. On narrower machines, these pattern attachments operate with less mechanical stress, leading to fewer breakdowns and higher pattern fidelity.
Running a narrow backing on a wide machine is a common but flawed practice. The mechanical realities of running a 2m backing on a 4m machine create immediate maintenance liabilities. Half of the machine operates under load while the other half runs empty.
Partial-width running causes uneven wear on spiked feed rollers. Needle bars experience asymmetrical stress. Tensioning systems degrade unevenly. Over time, the side of the machine used for narrow runs will fall out of calibration with the unused side, leading to severe long-term maintenance issues and poor fabric quality when you eventually return to full-width production.
The knives and loopers on the empty side of the machine continue to reciprocate without yarn to lubricate them. This dry friction causes the cutting edges to dull prematurely and generates excessive heat. Technicians must manually remove the gauge parts from the unused section to prevent this damage, which adds hours of non-productive labor to the setup process.
Procuring a 4m+ machine introduces major logistical risks. These machines require specialized heavy rigging teams. They ship in oversized containers and often necessitate facility modifications. You may need to widen loading dock doors, remove non-load-bearing walls, or reinforce concrete floor slabs to handle the extreme dynamic vibration.
Moving a 15-ton cast iron frame into position requires heavy-duty machine skates, hydraulic gantries, and precise coordination. The floor must be perfectly level. A variance of just a few millimeters across a 4-meter span will cause the machine frame to twist, binding the main shaft and destroying the main bearings within the first few hours of operation.
Wider spans present larger safety hazards for operators. The sheer mass of the moving parts requires strict protocols. You must mitigate these risks by conducting a thorough site survey prior to procurement. Install comprehensive safety systems. Mandate the use of full-width light curtains, interlocking safety gates, and easily accessible emergency stop pull cords spanning the entire front and rear of the machine.
Wider spans increase the difficulty of maintaining uniform tension across the primary backing. If tension drops in the center, the fabric bows. This leads to edge curling, missed stitches, or severe pattern distortion in the center of the roll. A distorted pattern ruins the alignment for downstream carpet tile slitting.
You can mitigate tension risks by specifying advanced fabric handling components. Use pinned entry rollers to grip the fabric securely across its entire width. Install heavy-duty stenter frames to pull the fabric taut horizontally before it enters the tufting zone. Implement automated, load-cell-based tension control systems for any machine exceeding 3 meters in width.
The tension control loop relies on load cells measuring the fabric pull. These cells send data to a programmable logic controller, which instantly adjusts the speed of the servo-driven feed rollers. This closed-loop system ensures the backing remains perfectly flat and taut, allowing the needles to penetrate cleanly without deflecting the fabric downward.
Audit your current facility floor space, explicitly measuring the footprint required for the yarn creel, the machine frame, and the necessary operator walkways.
Confirm the maximum functional width of your existing finishing lines, including latex coating ovens, tentering frames, and shearing equipment.
Request precise throughput simulations from equipment manufacturers based on your specific yarn weights, stitch rates, and backing types.
Evaluate your local supply chain to ensure primary backing rolls are readily available in your selected working width without incurring oversized shipping penalties.
Assess your maintenance team's capability to handle heavy rigging and precision calibration across wide spans before committing to a 4-meter or 5-meter machine.
A: Handheld guns are manual tools used by hobbyists on static, stretched frames. Industrial machines are massive, automated systems designed for continuous roll-to-roll production across widths of 1 to 5 meters. They utilize hundreds or thousands of needles simultaneously to produce commercial volumes.
A: While technically possible by removing needles and adjusting feed rollers, it is highly inefficient. Running partial widths causes uneven mechanical wear on gauge parts, degrades feed rollers asymmetrically, and wastes valuable production floor space.
A: The industry standards for broadloom production are typically 4 meters or 4.5 meters. These widths are specifically engineered to produce standard residential and commercial wall-to-wall carpet rolls without requiring seams during installation.
A: There is a direct mathematical correlation. Wider machines require more needles across the span. More needles require more yarn cones feeding the machine simultaneously. This exponentially increases the physical footprint of the creel and the manual labor required for threading.
A: Profitability depends entirely on order volume and changeover frequency. Wide machines are highly profitable for long, uninterrupted commodity runs. Narrow machines are far more profitable for short, custom runs, varying pile heights, and rapid pattern changes.
A: Wider spans create significant engineering challenges in preventing fabric bowing and skewing. As width increases, the backing tends to sag in the center. This necessitates much more robust tensioning, pinned rollers, and guiding systems on 4m+ machines to prevent pattern distortion.
